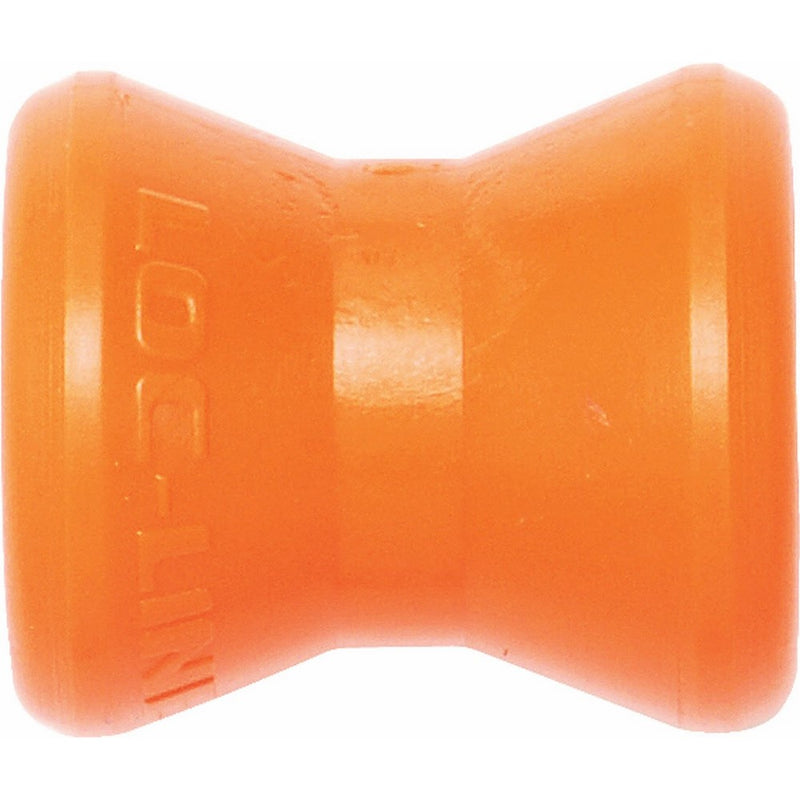

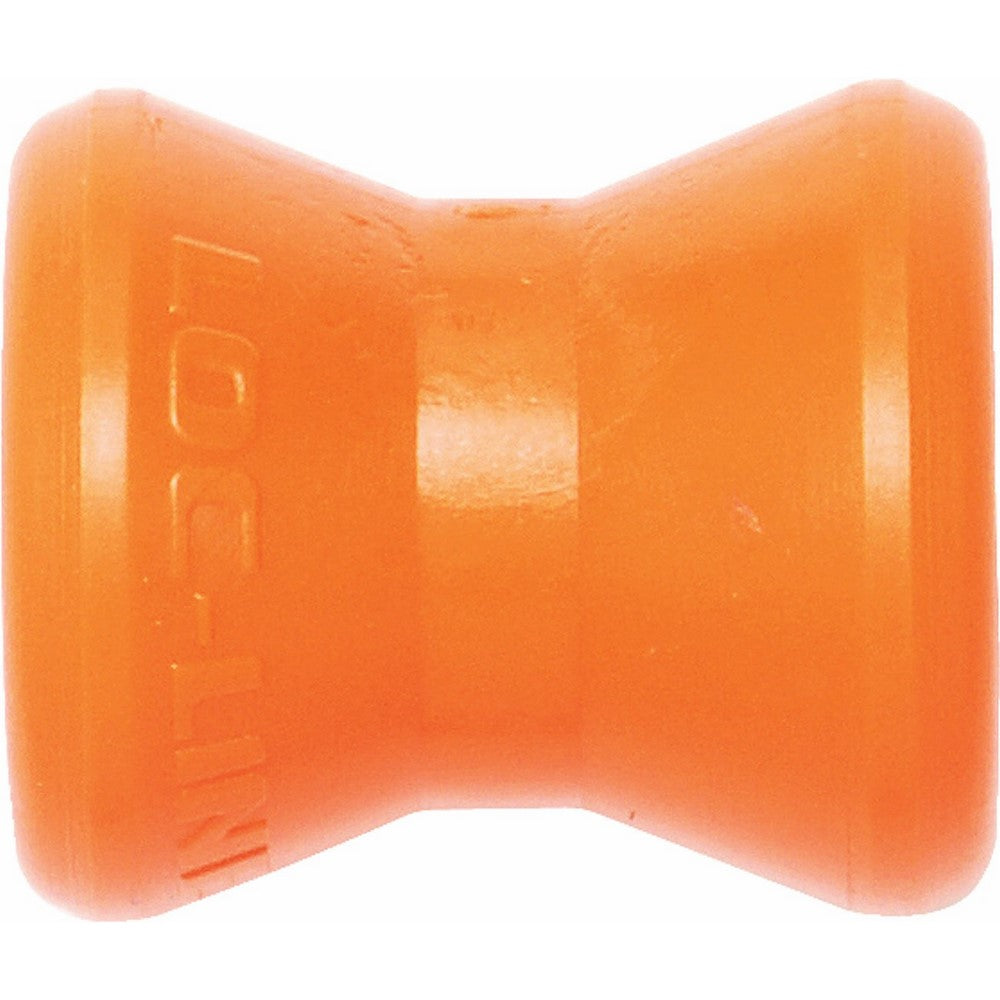

Loc-Line Coolant Hose Component, Acetal Copolymer, Double Socket, 1/4" Diameter, 1/4" Hose ID (Pack of 4)

Loc-Line
SKU: EZFB00065UCFM
Regular Price $9.61 Sale Price Unit price: $0.00

Quick Overview

Double socket adapter reverses hose direction to add a second connectorFitting connects to Loc-Line modular hose on both endsAcetal copolymer plastic has an orange color, resists corrosion and moisture, and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxideMaximum operating temperature...
  • Double socket adapter reverses hose direction to add a second connector
  • Fitting connects to Loc-Line modular hose on both ends
  • Acetal copolymer plastic has an orange color, resists corrosion and moisture, and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide
  • Maximum operating temperature of 170 degrees F
  • Material meets NSF/ANSI standards 14, 51, and 61 for drinking (potable) water

  • The Loc-Line double socket hose fitting is made of orange acetal copolymer plastic and has sockets on both ends for reversing hose direction to add a second connector. The acetal copolymer plastic resists corrosion and moisture and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide. The fitting has a maximum operating temperature of 170 degrees F. The material meets National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) 14, 51, and 61 specifications for use with drinking (potable) water, and complies with Registration, Evaluation, Authorization of Chemicals (REACH) and Restriction of the Use of Certain Hazardous Substances (RoHS) standards. The component connects to other Loc-Line components by a ball-and-socket design that snaps together for a tight seal.

    Specifications
    Maximum Pressure, 1/4" Inner Diameter 30 psi (up to 110 psi with element clamp)
    Maximum Flow, 1/4" Inner Diameter 250 gallons/hour
    Maximum Pressure, 1/2" Inner Diameter 20 psi (up to 110 psi with element clamp)
    Maximum Flow, 1/2" Inner Diameter 478 gallons/hour
    Maximum Pressure, 3/4" Inner Diameter 10 psi
    Maximum Flow, 3/4" Inner Diameter 1,140 gallons/hour

    Lockwood Products manufactures the Loc-Line modular hose system of low-pressure hose and couplings used for coolant, air delivery, smoke and dust removal, and other applications. The company, founded in 1981, is headquartered in Lake Oswego, OR.


    Brand: Loc-Line, Model: 41409, Size: 1/4" Diameter, 1/4" Hose ID
