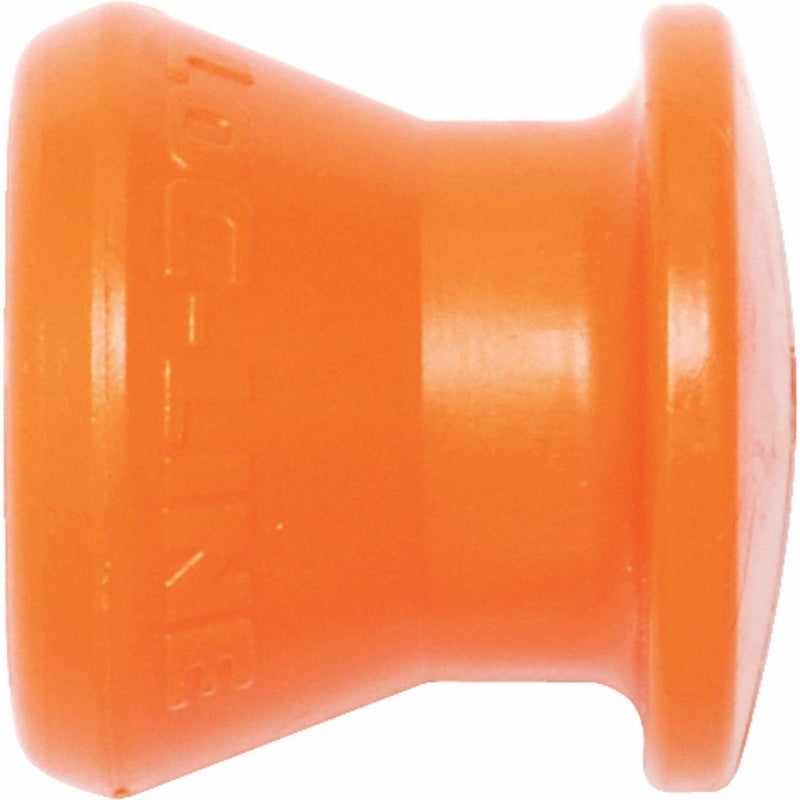

Cap for closing the end of a hose or fittingConnects to Loc-Line modular hose and fittingsAcetal copolymer plastic has an orange color, resists corrosion and moisture, and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxideMaximum operating temperature of 170 degrees FMaterial meets NSF/ANSI standards 14, 51, and 61 for drinking (potable) waterThe Loc-Line end cap hose fitting is made of orange acetal copolymer plastic and is used to close the end of a Loc-Line modular hose or fitting. The acetal copolymer plastic resists corrosion and moisture and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide. The fitting has a maximum operating temperature of 170 degrees F. The material meets National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) 14, 51, and 61 specifications for use with drinking (potable) water, and complies with Registration, Evaluation, Authorization of Chemicals (REACH) and Restriction of the Use of Certain Hazardous Substances (RoHS) standards. The component connects to other Loc-Line components by a ball-and-socket design that snaps together for a tight seal.
Specifications |
Maximum Pressure, 1/4" Inner Diameter |
30 psi (up to 110 psi with element clamp) |
Maximum Flow, 1/4" Inner Diameter |
250 gallons/hour |
Maximum Pressure, 1/2" Inner Diameter |
20 psi (up to 110 psi with element clamp) |
Maximum Flow, 1/2" Inner Diameter |
478 gallons/hour |
Maximum Pressure, 3/4" Inner Diameter |
10 psi |
Maximum Flow, 3/4" Inner Diameter |
1,140 gallons/hour |
Lockwood Products manufactures the Loc-Line modular hose system of low-pressure hose and couplings used for coolant, air delivery, smoke and dust removal, and other applications. The company, founded in 1981, is headquartered in Lake Oswego, OR.
Brand: Loc-Line, Size: 1/4" Hose ID
