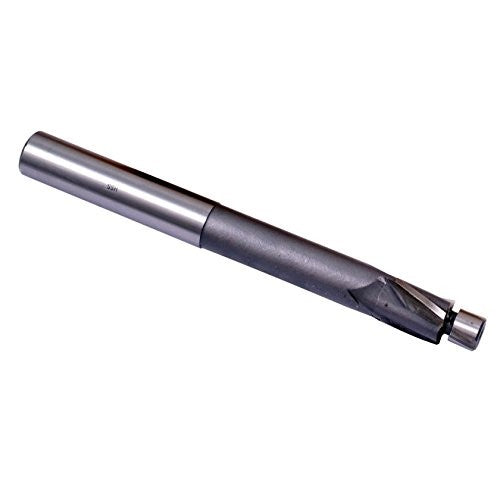

HHIP 2007-0010 #10 x 13/64 HSS 3 Flute Solid Pilot Counterbore

Cap Screw #10; Cutter Diameter 21/64"

Pilot Diameter 13/64"; Shank Diameter 5/16"

Continuous pilot counterbores cut rapidly, smoothly and accurately, producing long spiraling chips rather than small metal particles Length 3-1/2"

Individual counterbores The pilot extends the full Length of the flute portion of the tool; High speed steel

Length 3-1/2"

Continuous pilot counterbores cut rapidly, smoothly and accurately, producing long spiraling chips rather than small metal particles The pilot extends the full Length of the flute portion of the tool As cutter flutes are Ground back due to wear, a new section of pilot becomes exposed The pilot head may be cut off to any desired Length when repeated sharpening make it too long for practical use Continuous pilot counterbores have a life many times that of the conventional type counterbore.
Brand: HHIP, Model: 2007-0010, Size: #10 Size
