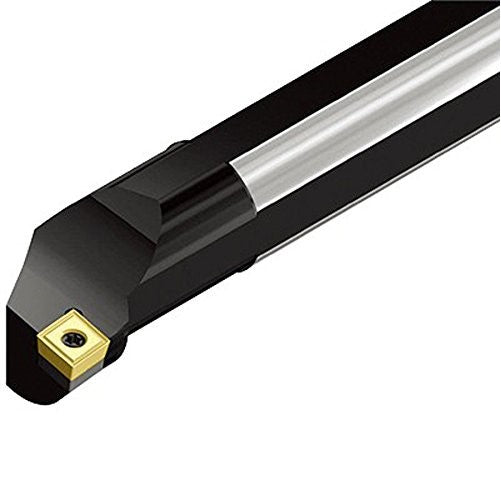

HHIP 1001-0026 3/8 x 6 Inch Shank S-SCLCR6-2 Indexable Boring Bar with Insert

3/8" Shank S-SCLCR6-2 Indexable Boring Bar With Insert

7 degrees Relief angle

Negative 5 degrees Lead angle for boring

3 degrees Side & end cutting edge angle

This is a profiling bar for semi-finishing and finishing operations

Utilizes CCMT-21.5 80 degrees diamond inserts. 7 degrees Relief angle. Negative 5 degrees Lead angle for boring. 3 degrees Side & end cutting edge angle. Torx wrench T-8 included. CCMT insert included. Dimension style S06M-SCLCR2 Set/Style B Diameter x Overall Length 3/8 x 6" Minimum Bore .500" Replacement inserts are the CCMT-21.51 (#6003-5021) Screw size is M2.5 x 8 This is a profiling bar for semi-finishing and finishing operations.
Brand: HHIP, Model: 1001-0026
