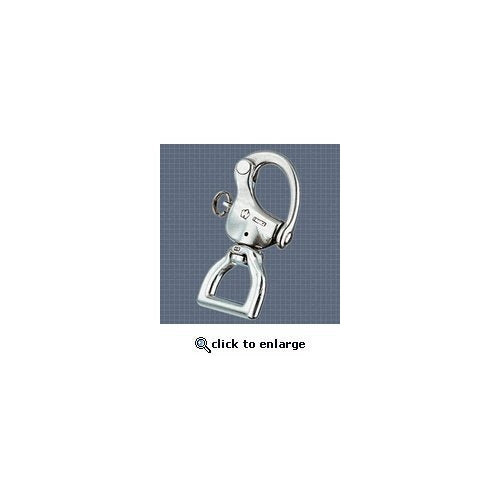

Wichard Stainless Steel Web Snap Shackle

Stainless Steel Webbing Swivel Snap Shackle

Size: Medium or 3 5/32"

Model # WIC 2374

By Wichard Inc. - Material: H.R. 17.4 PH S.S.

Open Eye Diameter: 5/8" (16mm) - Web Eye Width: 1 3/16" (30mm)

Product Type: Wichard Stainless Steel Webbing Swivel Snap Shackle - Size: 3 5/32" or Medium - Model # WIC-2374 - Length: 3 5/32" (80mm) - Open Eye Diameter: 5/8" (16mm) - Web Eye Width: 1 3/16" (30mm) - Weight: 3 oz. (85 g)- Safe Working Load: 2,116 lbs. (960 kg.) - Breaking Load: 4,400 lbs. (2,000 kg.) - Material: H.R. 17.4 PH S.S. Wichard Stainless Steel Web Snap Shackles are built to withstand the harshest conditions imaginable. Excellent working and breaking loads. Easy to open by pulling the plunger pin. Lanyard can be attached to pin for even easier opening. Breaking load is the static load at which total failure, by rupture or deformation, occurs. Safe working load is the maximal static load the product can endure without deforming. Prudence dictates not exceeding 80% of the functional limit.
Brand: Wichard, Color: Silver, Size: Medium
