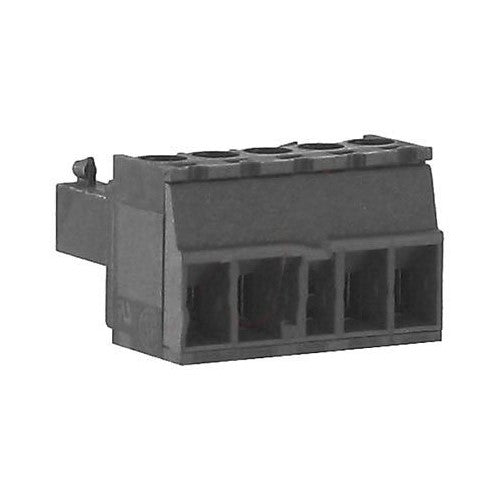

WECO 110-A-111/05 , Conn; Term Blk; PCB; Plug; Plug-In Screw; 5; 3.5 mm; 30-16 AWG; 8 A; 300 V

WECO 110-A-111/05 , Conn; Term Blk; PCB; Plug; Plug-In Screw; 5; 3.5 mm; 30-16 AWG; 8 A; 300 V

Series 12 Plug-in-Screw Plugs, 26-12 AWG Wire Size, 10 A Current Rating, Polyamide Body Material Series 110 offers a lower profile and smaller spacing than series 120 and 121 plug-in connectors. Headers feature a poke yoke mechanism to ensure proper mating. Specifications. Center to Center Spacing: 3.5 mm/0.138". Insulating Material: Polyamide, self-extinguishing to UL 94, V-0, color gray. Temperature Limits: Short Time - 140°C/284°F; Continuous - RTI 105°C/221°F - –40°C/–40°F. Comparative Tracking Index: CTI >600. Oxygen Index Rating: 33%. Screw: M2. UL File E69841 (8 A, 300 V, 30-16 AWG), CSA File LR24322 (8 A, 300 V, 30-16 AWG). 3.5 mm (0.138 in.) pitch. Plug-in direction and wire entrance parallel to PCB when plugged with 110-M-211, 110-P-211 and 110-S-211, plug-in direction and wire entrance perpendicular to PCB when plugged with 110-M-221, 110-P-221 and 110-S-221, plug-in direction and wire Entrance 45° to PCB when plugged with 110-V-211. Coding keys are Available to ensure proper mating
Brand: WECO, Model: 110-A-111/05
