VIAIR Quarter Duty Onboard Air System

Designed to actuacte smaller air horns, air lockers and for minor load levelling adjustments.Not intended for tire inflation.

Includes all parts needed for installation of you very own onboard air solution for air lockers and small air horns.Just connect your air line into our onboard air system.

120 PSI maximum working pressure and 25% duty cycle. Please note- use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8 inches is 10 to 11 feet pounds. Recommended torque for 1/4 inches and 3/8 inches is 12 to 15 feet pounds

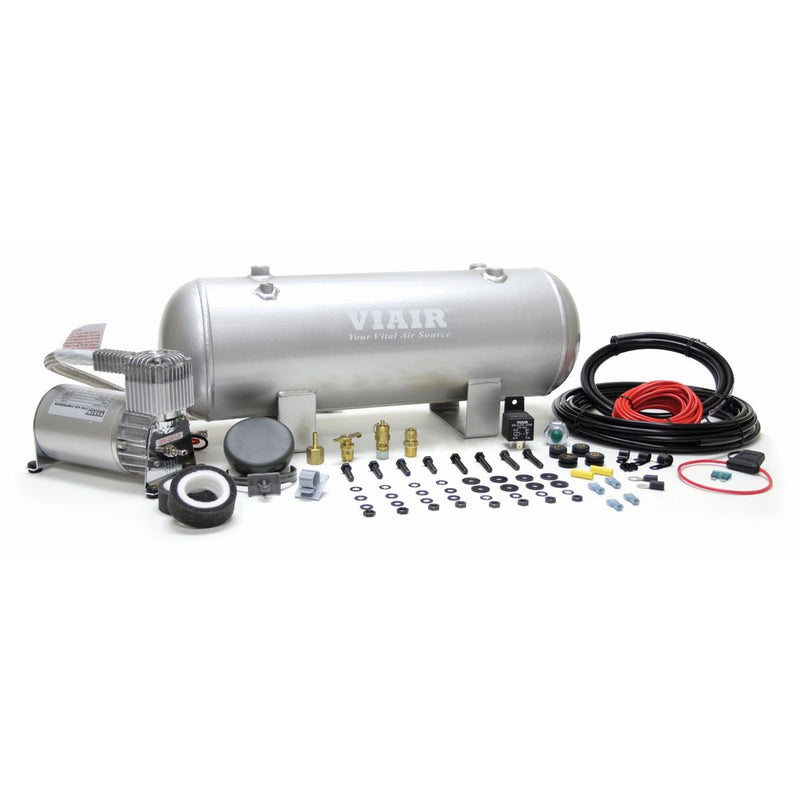

Remote mount air filter assembly, sealed compressor, 2.0 gallon air tank, 90 to 120PSI pressure switch and more!

Can be used to inflate helper bags for load leveling, inflate four tires up to 31 inches in diameter or use with heavy duty air horns.

Viair Quarter Duty Onboard Air System is a smaller, 120 PSI onboard air system suitable for many pneumatic needs, including smaller inflation tasks. Provides enough service time to operate for about 10 minutes of continued use, and 30 minutes of cool down time. Features permanent magnetic motor and 25 percent of duty cycle and 100 PSI of pressure.
Brand: VIAIR, Model: 10002, Color: Silver
