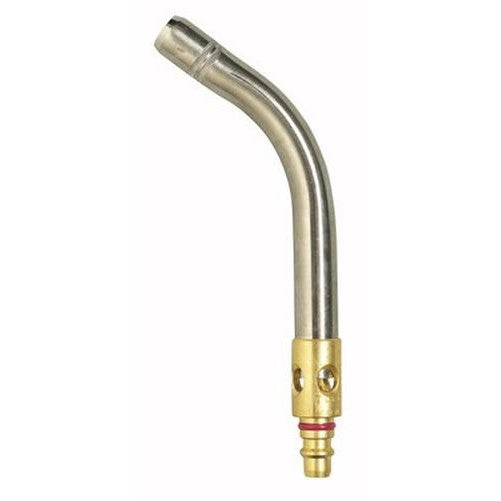

TurboTorch 0386-0106 A-32 Air Acetylene Swirl Tip

Can be used with any Air Acetylene torch handle (PLF-A5 or G-4)

Orifice screw is removable

"O" ring is color coded red for acetylene

Industrial applications this swirl tip can handle are HVAC and high capacity applications

Tip size is 3/4" (19.0 mm)

Victor TurboTorch 0386-0106 A-32 Air Acetylene Swirl Tip can be used with any Air Acetylene torch handle (PLF-A5 or G-4). The orifice screw is removable. The "O" ring is color coded red for acetylene. The industrial applications this swirl tip can handle are HVAC and high capacity applications. Tip size is 3/4" (19.0 mm). The gas flow 33.2 at 14 PSI SCFH and 2.82 at (0.9) M3/HR. The soft solder is 4 to 6 inches (100-150 mm) and the silver braze is 1-1/2 to 4 inches (40-100 mm).
Brand: ESAB, Model: 0386-0106, Color: Brass, Size: 3/4" or 19mm
