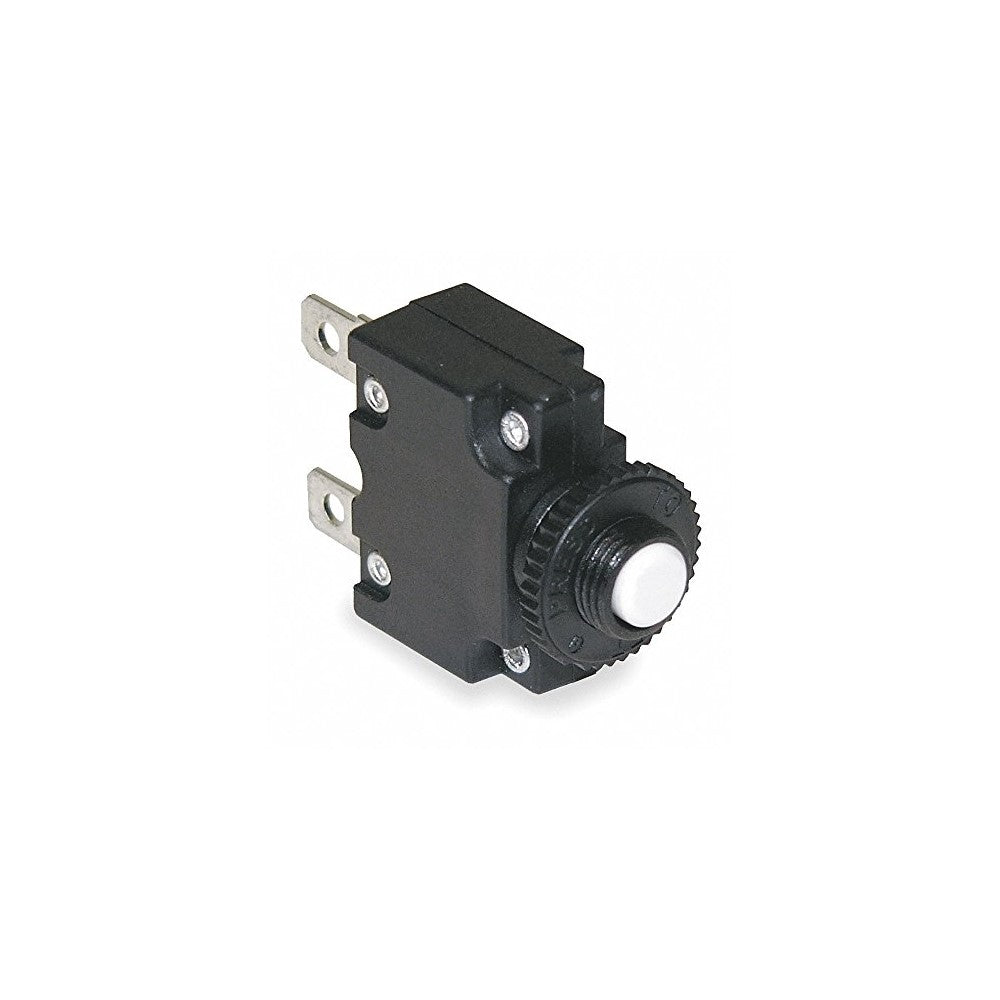

Thermal Circuit Breaker 1P 5 Amp 250VAC/32VDC

Price For: Each AC Voltage Rating: 250VAC Max. AIR Rating: Not Rated AIR120VAC: Not Rated Circuit Breaker Type: Thermal Terminal Connection: 1/4" Tab Item: Circuit Breaker Phase: 1 AIR125VDC: Not Rated Number of Poles: 1 AIR65VDC: Not Rated Curve Type: Medium Standards: UL/cUL/CSA/TUV/CE/UL 1500/ISO8846 for Ignition Protection/Marine Max. Wire Size: 14 AWG

Amps: 5 AIR240VAC: 0.2KA Switch Type: Push Button Mounting Type: 3/8" Collar Width: 0.55" Length: 1.15" Depth: 1.78" DC Voltage Rating: 32VDC Country of Origin (subject to change): Taiwan

Panel-Mount Circuit Breaker Thermal Trip has an operating temp. of -10° to 60°C. Functionally equal to ETA, Joemex, and MPI Compact, precision-design breakers have few moving parts-a cost-effective alternative to hydraulic/magnetic breakers. They offer extremely reliable circuit protection with high resistance against shock and vibration. Half-shell construction, and 50/60 Hz. Circuit Breaker, Thermal, Switch Type Push Button, Curve Type Medium, Number of Poles 1, Amps 5, AC Voltage Rating 250VAC, DC Voltage Rating 32VDC, Max. AIR Rating Not Rated, AIR120VAC Not Rated, AIR125VDC Not Rated, AIR240VAC 0.2KA, AIR65VDC Not Rated, Phase 1, Terminal Connection 1/4 In. Tab, Max. Wire Size 14 AWG, Length 1.15 In., Width 0.55 In., Depth 1.78 In., Standards UL/cUL/CSA/TUV/CE/UL 1500/ISO8846 for Ignition Protection/Marine, Mounting Type 3/8 In. Collar
Brand: Carling Technologies, Size: 14 AWG
