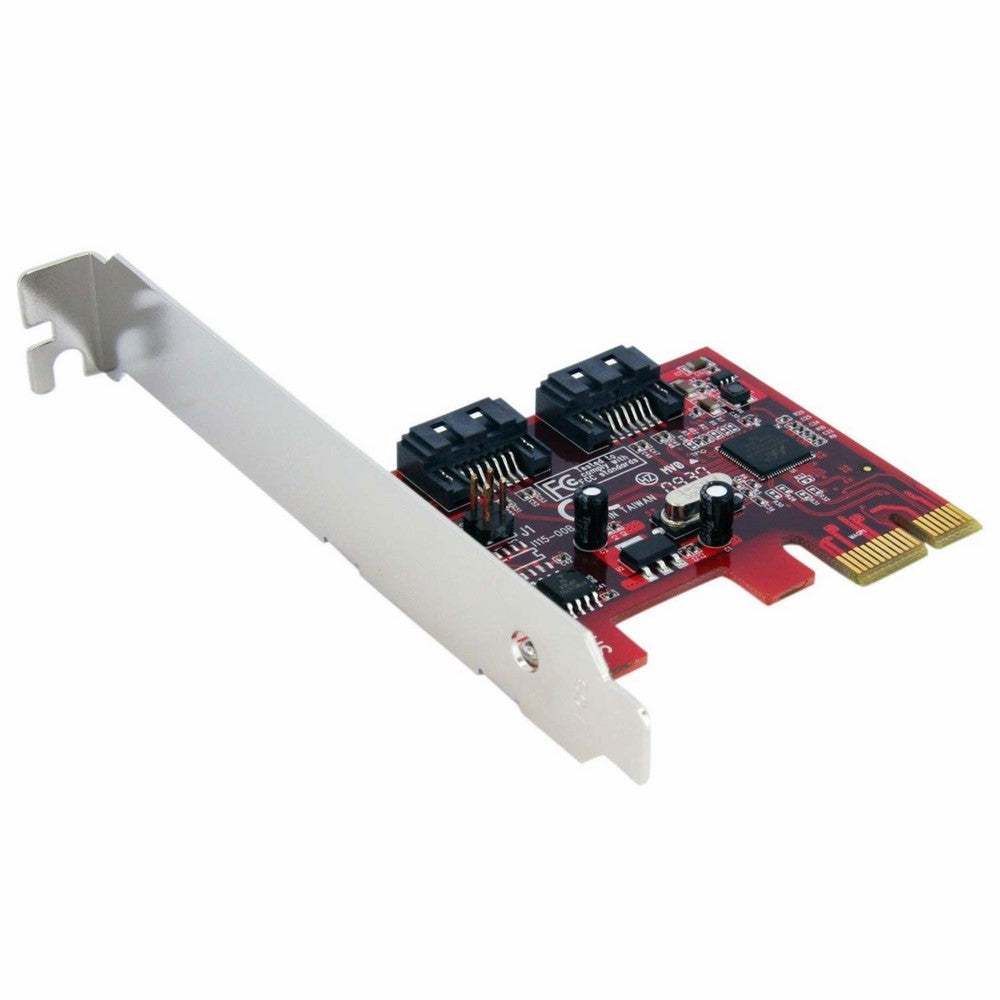

StarTech.com 2 Port SATA 6 Gbps PCI Express SATA Controller Card PEXSAT32

Twice the speed of SATA II (3Gbps)

Ships with a full profile bracket install, low profile included. Number of Drives Supported Through Port Multiplier- 1 to 5

Supports SATA Rev 3.0 transfer speeds up to 6.0Gbps and backwards compatible with SATA I/II at 1.5/3.0Gbps

Port Multiplier FIS-based and Command-based switching supported

Supports RAID 0 and 1 modes

Compliant with PCI Express 2.0 standards

Uses existing SATA I/II connectors and cabling

Supports Native Command Queuing (NCQ) and ATA/ATAPI commands

The PEXSAT32 2-Port PCI Express SATA 6 Gbps (SATA 3.0) Controller Card offers simple connectivity between a host computer and SATA 3.0 devices - a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving. With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs. The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single SATA connection. A dual profile solution, the SATA 3.0 controller card includes a low profile/half-height bracket for installation in slimline or small form factor computer cases.
Brand: StarTech, Model: PEXSAT32, Size: 2x SATA III
