Omega 10208 Black Shorty Hydraulic In-Line Bottle Jack - 20 Ton Capacity
Out Of Stock
Omega
SKU: EZFB002YKK03Q
Quick Overview
Machined and polished cylinders with die-cut threads provide nonabrasive leak-free durable performanceFabricated from hard cast steel with heat-treated critical stress areasHydraulic system is protected from internal damage by a bypass mechanism US patent number: 5,946923Unique cross-type forged release valves assures positive load controlOverload protectionIn Line Bottle Jack for Easy Jack...
In Line Bottle Jack for Easy Jack Position

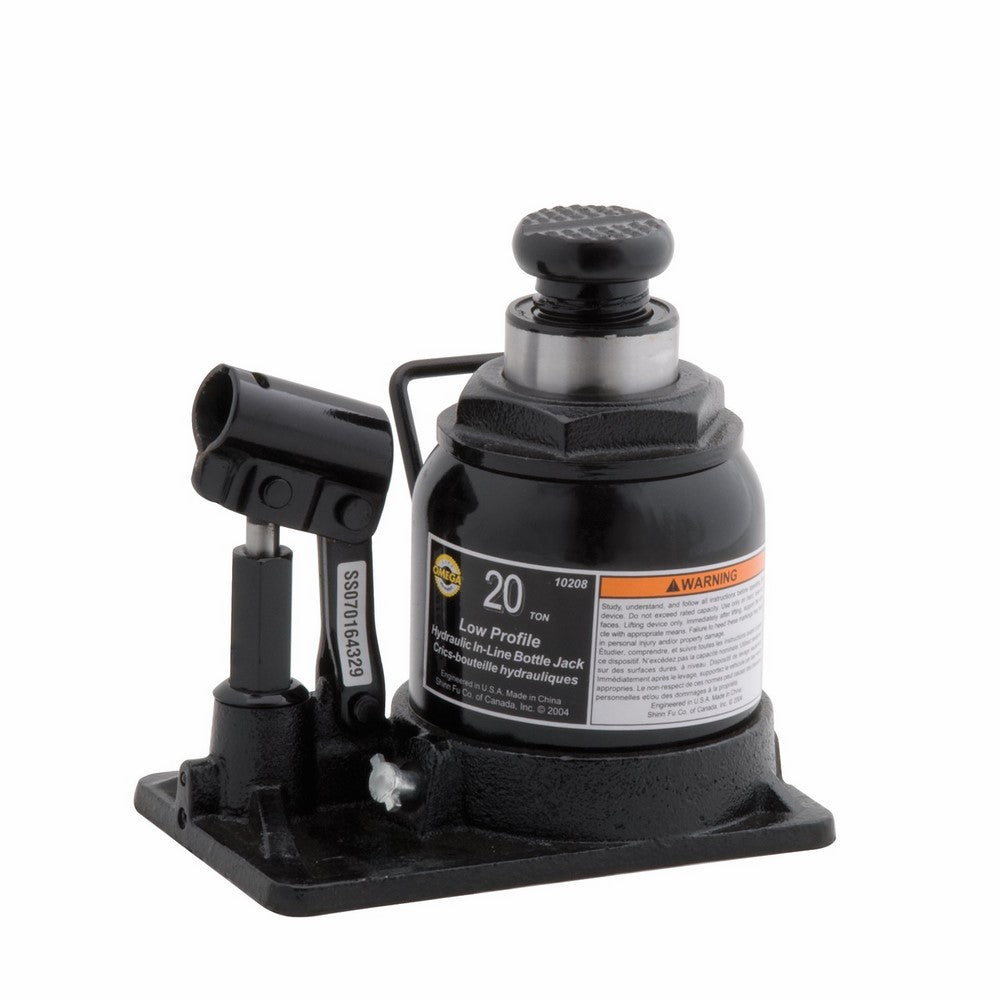

Omega 10208 Bottle Jack is a 20 Ton In-Line bottle jack. Its in-line pump designed makes the jack positioning under load with the ease. The easy accessible pumping system eliminates off-center pumping force.
Its machined and polished cylinders with die cut threads provide non-abrasive leak free, durable performance. At the same time, Omega 10208 bottle jack also features the built-in bypass device to protect hydraulic system from over pumping damage.
Omega 10208 Bottle Jack also features the heat treated extension screw that allows low pick up height adjustment and maximum lift height.
It also features the unique cross type forced release valve that assures positive load control. In addition, the wide, rugged base provides the extra stability and strength.
- Built-In Bypass Device - Heat-Treated Extension Screw - In-Line Pump Design with Wide and Rugged Base - Unique Cross Type Forged Release ValveSpecifications
- Capacity: 20 Ton - Base Size: 7-3/4 x 5 Inch - Min. Height: 6-1/2 Inch; Max. Height: 11-1/4 Inch; - GW: 22 LbsOmega 10208 Bottle Jack is backed by the full one year warranty from the date of the purchase.
Want to eliminate the off center pumping, get our in-line bottle jack now
Brand: Omega, Model: 10208, Color: Black
