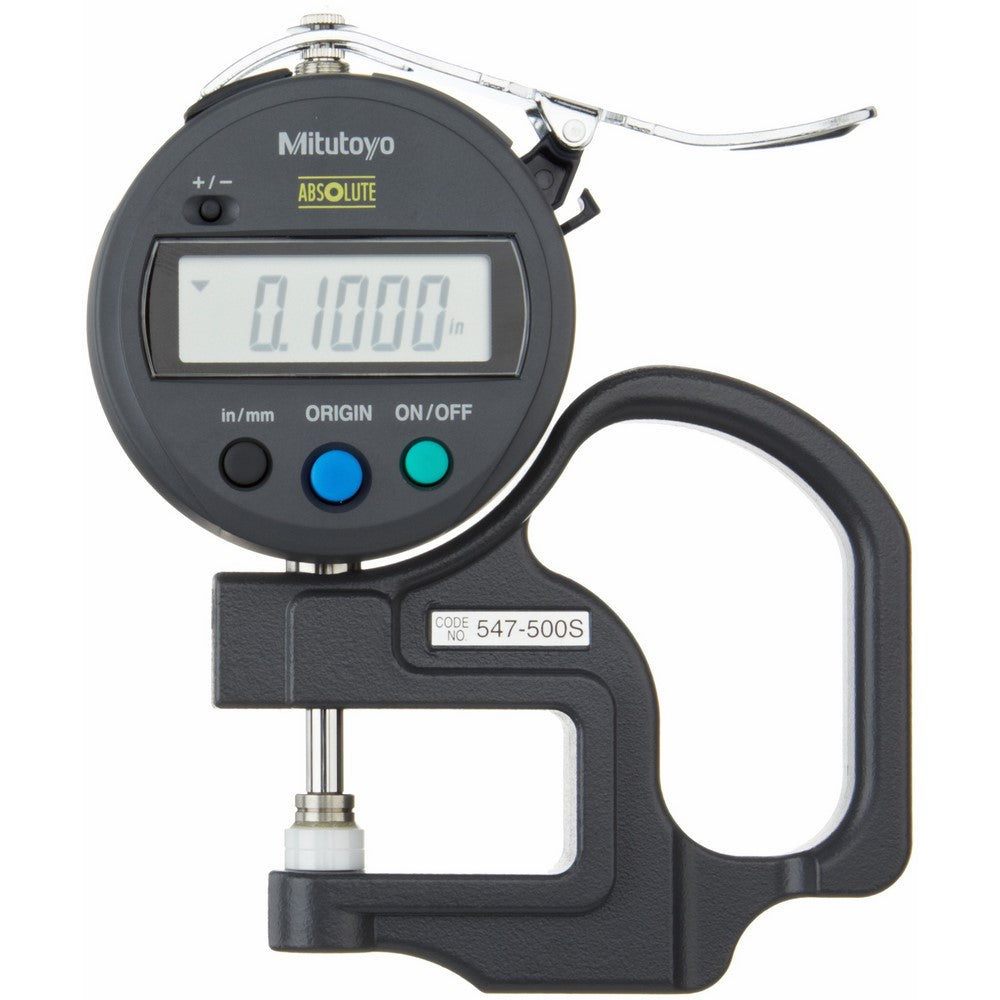

Mitutoyo 547-500S Digital Thickness Gauge with Flat Anvil, Standard ID-S Type, Inch/Metric 0-0.47" (0-12mm) Range, 0.0005" (0.01mm) Resolution, /-0.001 Accuracy

Mitutoyo 547-500S Digital Thickness Gauge with Flat Anvil, Standard ID-S Type, Inch/Metric 0-0.47" (0-12mm) Range, 0.0005" (0.01mm) Resolution, /-0.001 Accuracy

Out Of Stock
Be the first to review this product
Mitutoyo
SKU: EZFB00JZF25YU
$445.81 Unit price: $0.00
Add to wishlist Add to compare

Quick Overview

Thickness gauge measures 0 to 0.47" (0 to 12mm) with 0.0005" resolution and or - 0.001" accuracy, for measuring the thickness of sheet metal, plastic, or rubber workpiecesLCD screen displays in inches and metric unitsContact point and anvil have flat measuring faces and are ceramic for corrosion resistanceGrip handle, thumb...

Free Shipping

On Orders Over $100

  • Thickness gauge measures 0 to 0.47" (0 to 12mm) with 0.0005" resolution and or - 0.001" accuracy, for measuring the thickness of sheet metal, plastic, or rubber workpieces
  • LCD screen displays in inches and metric units
  • Contact point and anvil have flat measuring faces and are ceramic for corrosion resistance
  • Grip handle, thumb trigger, and spring-loaded spindle for taking accurate measurements
  • Functions include origin setting and direction changeover

    • The Mitutoyo 547-500S digital thickness gauge, standard ID-S body, is for taking precise thickness measurements of thin products such as sheet metal, plastic, or rubber workpieces. This gauge has a measurement range of 0 to 0.47" (0 to 12mm), a resolution of 0.0005", and an accuracy of or - 0.001". The LCD screen displays in inches and metric units. The contact point and anvil for this gauge are flat and are constructed of ceramic for corrosion-resistance. This gauge has a grip handle, thumb trigger, and spring-loaded spindle for taking accurate measurements. Additional functions for this gauge include origin setting and direction changeover.

    This model has a measuring force of 1.5 Newtons (N) or less. The unit has a battery life of 20,000 hours. An SR-44 battery is included. This gauge offers serial data output (using optional SPC cables, sold separately), which increases speed and reliability of digital measurement records.

    Specifications
    Anvil/spindle type Flat, spring-loaded spindle, constructed of ceramic
    Range 0 to 0.47" (0 to 12mm)
    Resolution 0.0005"
    Accuracy or - 0.001"
    Face LCD displays in both inches and metric units
    Body Standard ID-S-type, grip handle, and thumb trigger
    Data output Yes
    Measuring force Less than 1.5N
    Shipping weight 1.3lb.
    Power source SR-44 battery

    Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.

    What's in the Box

  • Mitutoyo 547-500S gauge
  • SR-44 battery

    • Brand: Mitutoyo, Model: 547-500S
