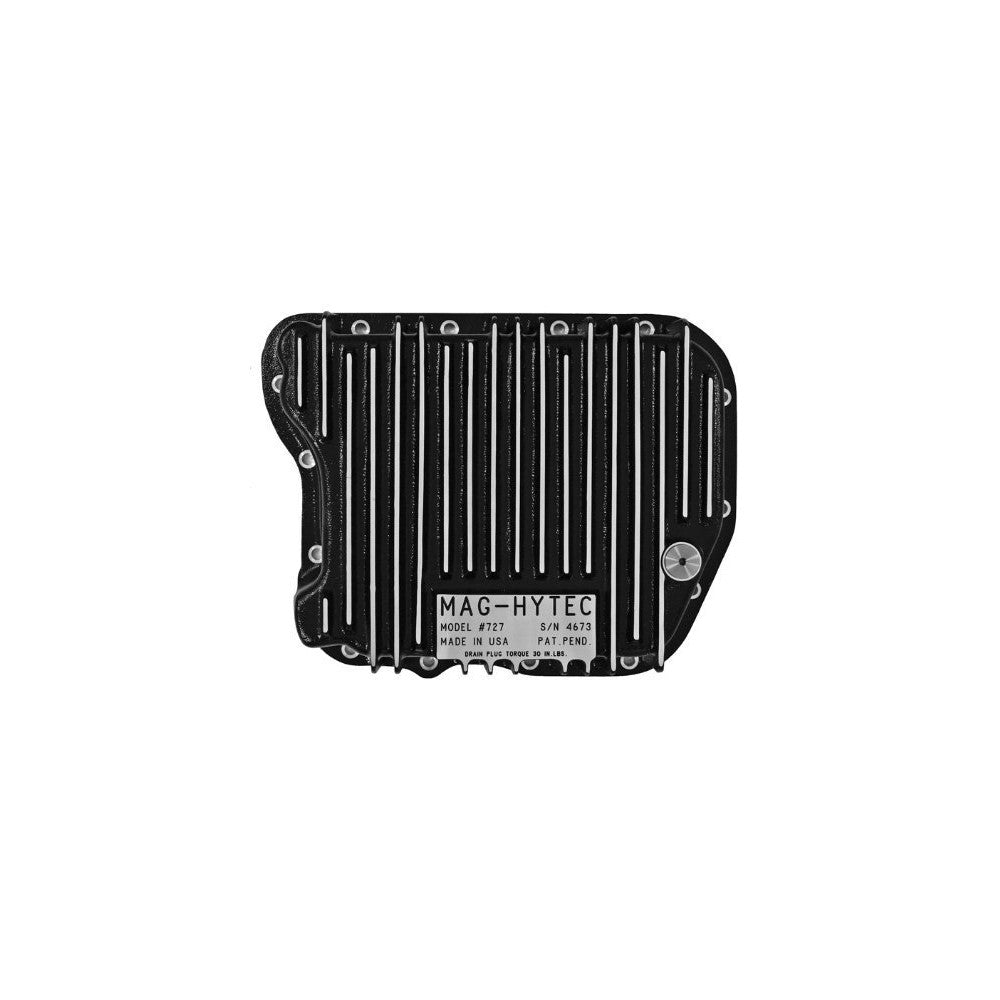

MAG-HYTEC 727-D Transmission Pan

Overall height 3 7/8"

Holds 1 1/2 quarts more fluid than stock pan

Includes: Bolt kit, and Drain Plug.

Gasket Seal, with o-ring sealed magnetic Drain Plug.

(36RH, 37RH - 66 to 89) (46RH, 47RH - 89 to 95) and is also called the A-518 (46RE, 47RE - 96 to 01) (48RE 02 & 07)

Heavy Duty differential covers and transmission pans provide increased lubricant and cooling capacity for hard working recreational and service vehicles. Mag-Hytec covers and pans set your vehicle apart in both aesthetics and function - cast in A356-T6 aluminum and texture powder coated black with machined cooling fins. Magnetic drain plugs trap worn gear material promoting fluid integrity. Each unit is fitted with ARP 568 O-rings for superior sealing. All hardware is 303 stainless steel, in most applications no gasket or sealant is required, and all Mag-Hytec parts are covered by a lifetime limited warranty. Depend on Mag-Hytec when you're pulling a heavy load.Avoid costly reapirs - Extend the life of your Vehicle - Expand oil Capacity - Runs Cooler, Lasts Longer• Deep high-capacity sump for maximum cooling • Magnetic drain plug • 303 hardware except allen head cap screws are zinc plated • 1/8 NPT temperature sender port • Finned aircraft aluminum construction • Requires only three allen key wrenches (included) for installation and service • O-rings require no gaskets or sealants
Brand: Mag-Hytec, Model: 727-D
