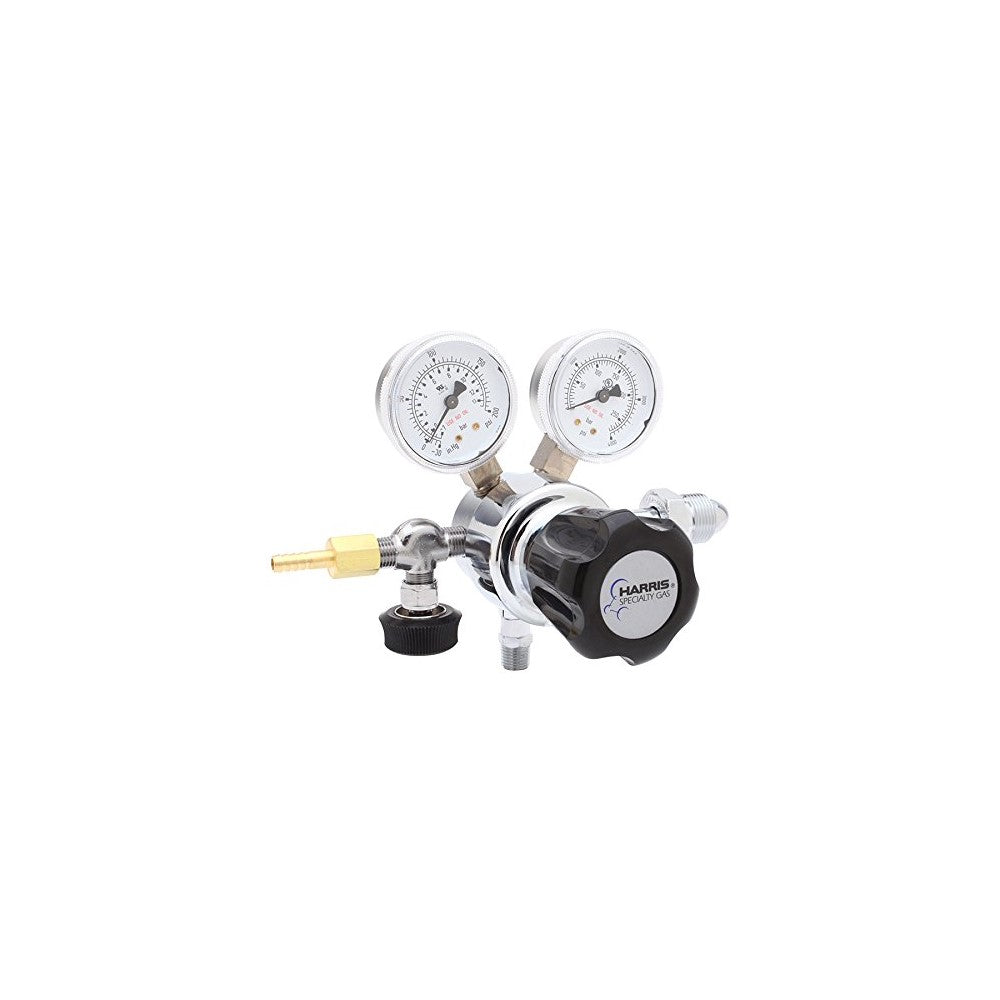

Harris KH1010 Model 401C Single Stage Regulator, Ar/N2/He, 250 psi

0-15, 0-50, 0-125 and 0-250 PSIG delivery pressure

Neoprene diaphragm for greater sensitivity

One-piece encapsulated seat design, to protect the seat from particulate contamination

Tamper-proof, self reseating internal safety valve

2" dual scale brass gauges (psi, kPa)Conforms to CGA E-4 standard for gas pressure regulators

A brass single stage regulator with a neoprene diaphragm for general purpose laboratory applications where a slight rise in delivery pressure from a full to near empty cylinder can be tolerated. The model 401C is not recommended for high purity applications which may be sensitive to contamination due to elastomeric components. The model 401C is suitable for: Non-corrosive industrial grade gases Purging Pressure testing Gas shielding.
Brand: Harris, Model: KH1010
