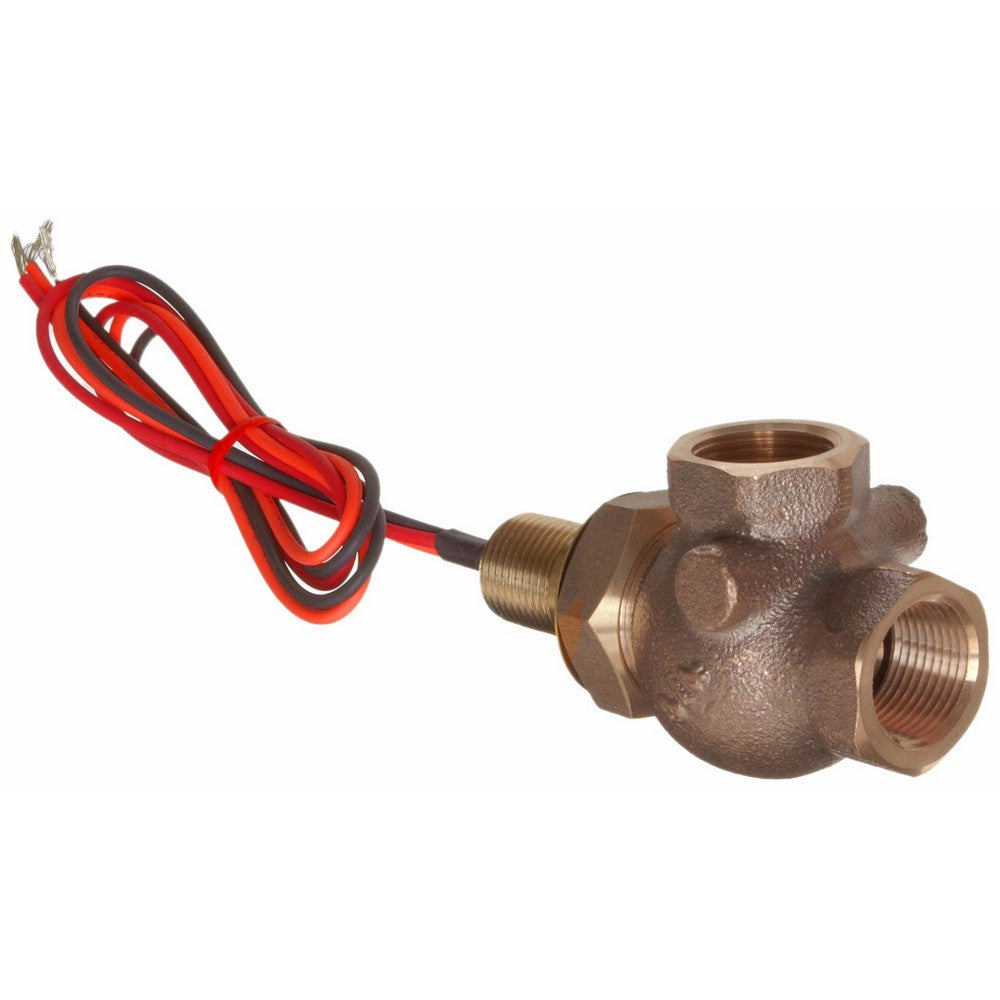

Gems Sensors FS-400 Series Bronze Flow Switch, Elbow, Shuttle Type, 0.75 gpm Flow Setting, 3/4" NPT Female

Wetted Materials: Bronze, Delrin, 316 Stainless Steel, Viton, Ceramic

Electrical Termination: 18 AWG, 24"-26" long Polymeric Leads

Switch Type: SPDT (20VA)

Set Point Differential (Maximum): 0.15

Recommended Filtration: 150 micron

FS-400 Series - General Purpose, 90 Degree Flow Path. Provides accurate flow detection in water and oil with 1% repeatability. Flow settings on the adjustable version can be easily changed without disassembly. A shuttle by-pass vane inside the housing is controlled externally using an ordinary flat-blade screwdriver. These switches are ruggedly constructed of non-corrosive materials and resist shock and vibration. Suitable for triggering alarms on interlocking shutdown circuitry when flow rate is improper to protect bearings, gears and cooling systems.
Brand: Gems Sensors, Model: 26440, Size: 3/4" NPT Female
