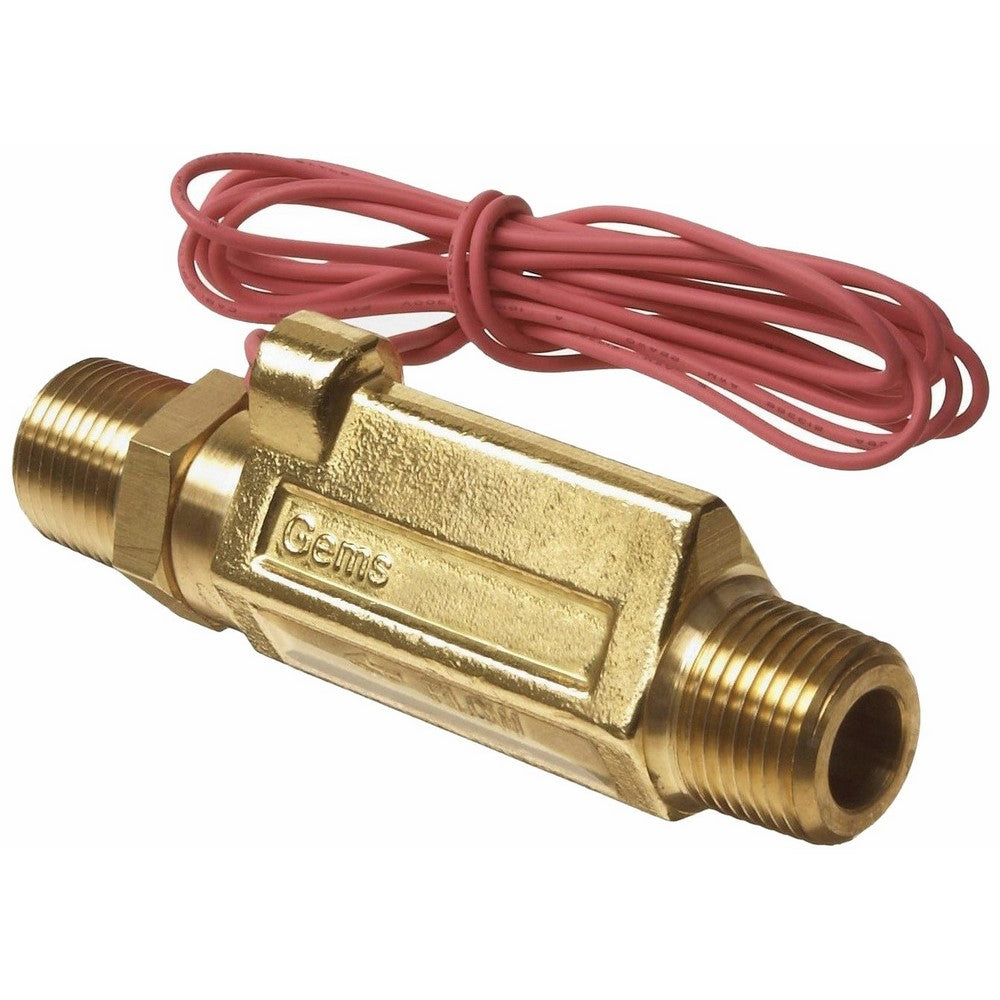

Gems Sensors FS-380 Series Brass High Pressure Flow Switch, Inline, Piston Type, 0.25 gpm Flow Setting, 3/8" NPT Male

Wetted Materials: Brass, PPS Composite, Epoxy, 316 Stainless Steel, Fluorocarbon

Electrical Termination: 22 AWG, 24"-26" long Polymeric Leads

Switch Type: SPST, N.O. (20VA)

Set Point Differential (Maximum): 0.2

Recommended Filtration: 100 micron

FS-380 Series - Compact Flow Switch for High Inline Pressures. These rugged inline flow switches use 100 micron filtration and are less susceptible to clogging than other high-pressure inline flow switches. The one-piece magnetic PPS composite piston makes the FS-380 ideal for high-pressure applications such as industrial cleaning equipment. The FS-380 is also an excellent choice for semicon cooling applications where simple design and reliable operation are required.
Brand: Gems Sensors, Model: 168432, Size: 3/8" NPT Male
