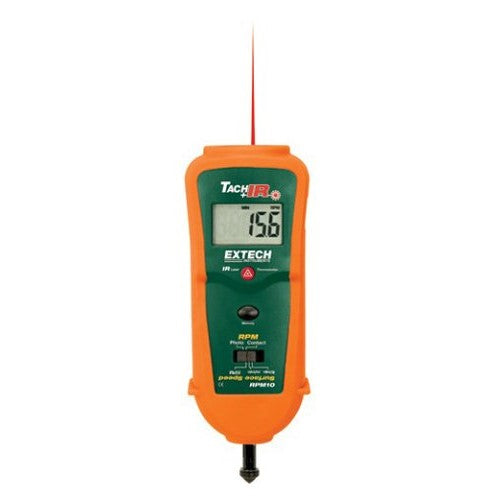

Extech RPM10 Combination Tachometer with Infrared Thermometer

Extech RPM10 Combination Tachometer with Infrared Thermometer

Out Of Stock
Be the first to review this product
Extech
SKU: EZFB000BF3A0G
$766.24 Unit price: $0.00
Add to wishlist Add to compare

Quick Overview

Item is a Class II laser product, 1mW power output.Built-in IR thermometer with laser pointer measures surface temperature from -4 to 600°F (-20 to 315°C)Laser photo tachometer mode measures up to 99,999 rpm at distances up to 6.5 feetContact tachometer mode measures rpm up to 20,000rpm and linear speed up...

Free Shipping

On Orders Over $100

  • Item is a Class II laser product, 1mW power output.
  • Built-in IR thermometer with laser pointer measures surface temperature from -4 to 600°F (-20 to 315°C)
  • Laser photo tachometer mode measures up to 99,999 rpm at distances up to 6.5 feet
  • Contact tachometer mode measures rpm up to 20,000rpm and linear speed up to 6560 feet/min (2000 meters/min)
  • Memory stores last reading and Min/Max for 5 minutes after shutting meter off
  • Characters reverse direction on display depending on contact or photo mode

    • Extech RPM10 Photo/Contact Tachometer with Built-in InfraRed Thermometer, Large 0.4" (5 digit) LCD display, Accurate to 0.05% with max resolution of 0.1rpm in either photo or contact mode, Wide Temperature range of -4 to 600°F (-20 to 315°C)

    The RPM10 is a combination tachometer which provides both contact and non-contact RPM measurements, making this device useful in virtually all applications. Complete with wheels for linear surface speed (0.2 to 6560 ft. /minute; 0.05 to 1999.9 m/minute) or RPM measurements, 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.

    Key Features
  • Built-in IR thermometer with laser measures remote surface temperature on motors and rotating parts
  • Wide Temperature range of -4 to 600°F (-20 to 315°C)
  • Fixed 0.95 emissivity, 6:1 distance to target ratio
  • Provides wide RPM (photo and contact) and Linear Surface Speed (contact) measurements
  • Accurate to 0.05% with max resolution of 0.1rpm in either photo or contact mode
  • Large 0.4" (5 digit) LCD display
  • Non-contact Photo tachometer uses a Laser for greater measuring distance up to 6.5ft (2m)
  • Contact tachometer for RPM and surface speed measurements
  • Memory stores Min/Max/Last
  • Characters on display reverse direction depending on mode
  • Double molded housing
    • Specifications
  • Display counts: 99,999 count LCD
  • Range (rpm): Photo: 10 to 99,999/ Contact: 0.5 to 20,000
  • ft/min: 0.2 to 6560 (Contact)
  • m/min: 0.05 to 1999.9 (Contact)
  • Basic Accuracy: ±(0.05%rdg1 digit)
  • Max rpm Resolution: 0.1rpm
  • Temperature (IR): -4 to 600°F
  • Dimensions: 8.5" x 2.6" x 1.5"
  • Weight: 10.6oz

    • Brand: Extech, Model: RPM10
