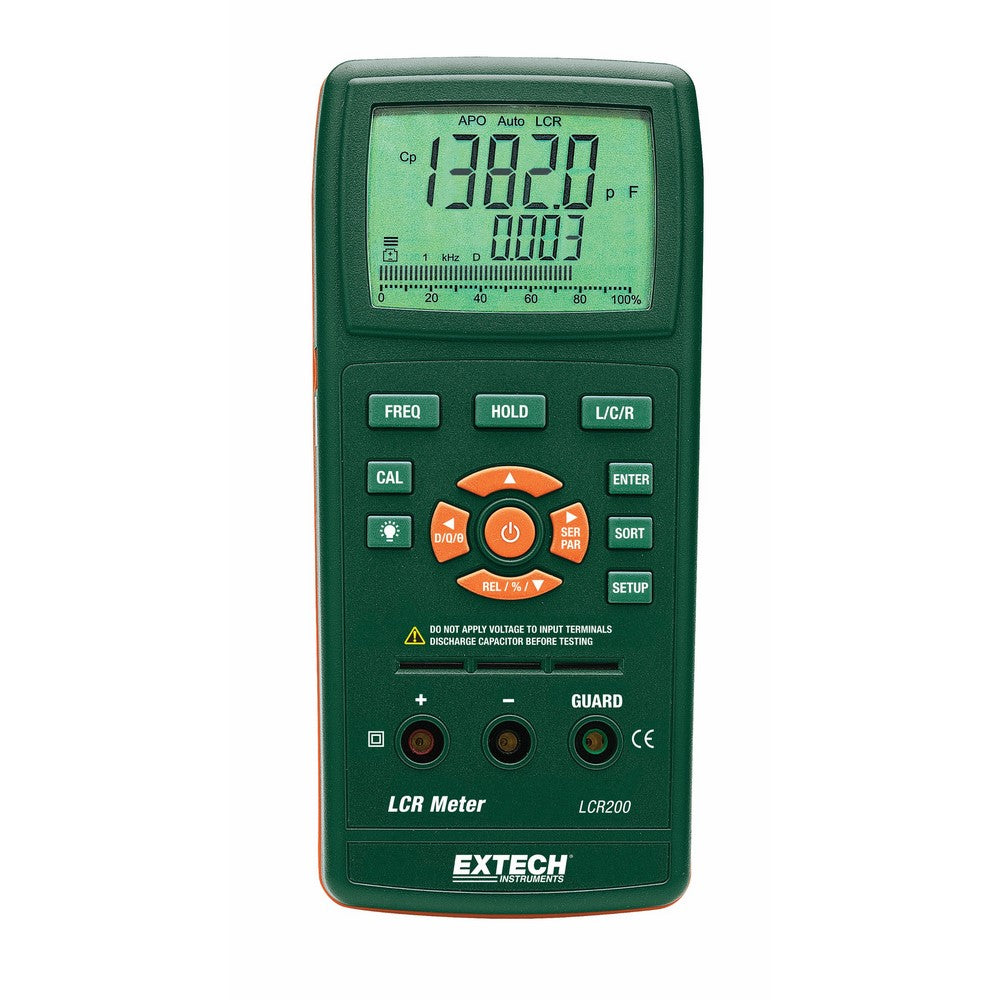

Extech LCR200 Passive Component LCR Meter
Out Of Stock
Extech
SKU: EZFB006WBTZ0W
Quick Overview
Measures Inductance, Capacitance, and ResistanceSecondary parameters: Q (Quality), D (Dissipation), R (Resistance), P (Phase), ESR (Equivalent Series Resistance)Five test frequenciesSet Hi/Lo limits using absolute values or percentage limitsParallel or Series equivalent circuitExtech LCR200 Passive Component LCR Meter; Measures Inductance, Capacitance, and Resistance with secondary parameter Q (Quality), D (Dissipation), R...
Extech LCR200 Passive Component LCR Meter; Measures Inductance, Capacitance, and Resistance with secondary parameter Q (Quality), D (Dissipation), R (Resistance), P (Phase), ESR (Equivalent Series Resistance)
The LCR200 is a passive component LCR meter. Discover the tremendous value with a range of features that help this meter provide the precise measurements you need. See simultaneous 20,000/2,000 count display of the primary parameter on the high contrast backlit display. You can set Hi/Lo limits using absolute values or percentages. Open and Short Zero removes unwanted stray impedances from the measurement. Use the built-in test fixture or external test leads (included). The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries. Complete with test leads and 9V battery.
Key FeaturesBrand: Extech, Model: LCR200
