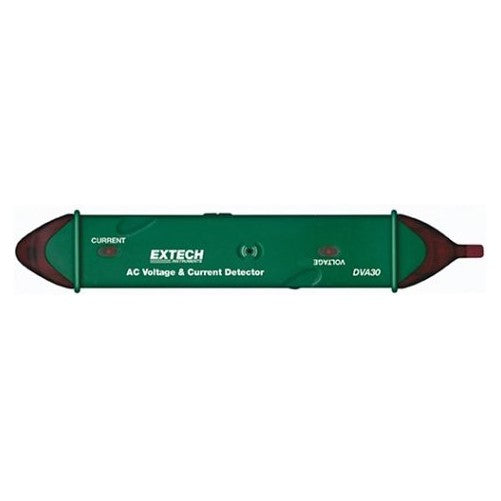

Extech DVA30 Non Contact Current and Voltage Detector

Extech
SKU: EZFB0000WU12A
Regular Price $61.24 Sale Price Unit price: $0.00

Quick Overview

Non-contact AC voltage and current detectionDetects current though conduit and shielded cableIdentifies "live" conductorsCat lll - 600V, CE and UL listedExtech DVA30 Non-Contact AC Voltage and Current Detector, Only two-in-one current/voltage detector designed for electrical testing, Convenient pocket size with clip The DVA30 is the only two-in-one current/voltage detector designed...
  • Non-contact AC voltage and current detection
  • Detects current though conduit and shielded cable
  • Identifies "live" conductors
  • Cat lll - 600V, CE and UL listed

  • Extech DVA30 Non-Contact AC Voltage and Current Detector, Only two-in-one current/voltage detector designed for electrical testing, Convenient pocket size with clip

    The DVA30 is the only two-in-one current/voltage detector designed for electrical testing. It detects AC voltage from 12-Volt to 600V and AC current from 200 mA at 0.2" distance and at much greater distances for larger current flow up to 1000 Amps. Audible and visual indicators show the presence of current or voltage. It can be used to trace concealed wires in walls and floors, identify hot wires, trace current flow where voltage detection does not work (behind walls, in conduits, through concrete, or underground). Complete with four LR44 button batteries and pocket clip.

    Key Features
  • Only two-in-one current/voltage detector designed for electrical testing
  • Non-Contact AC Voltage detection from 12V to 600VAC
  • Non-Contact AC Current detection from 200mA to 1000A
  • Sensitivity adjustments to increase or reduce sensor trigger threshold
  • Loud audible and bright visible sense detect indicators
  • Current sensor detects current flow through shielded wires, conduit, and metal circuit breaker/junction boxes
  • Current function detects current flow of 400mA at 0.2" distance and at much greater distances for larger current flows
  • Convenient pocket size with clip
  • Specifications
  • Voltage detection: 12V to 600VAC
  • Current sensitivity: 200mA (0.2A) AC at 0.2"
  • Audible indication: Beeper (Voltage & Current)
  • Visible indication: Flashing LED (Voltage & Current)
  • Frequency range: 50 to 500Hz
  • Operating Temperature: 14 to 122°F (-10°C to 50°C)
  • Operating Humidity: < 80%="">
  • Altitude: <>
  • Power supply: (4) LR44 batteries or equivalent
  • Dimensions: 7.6"x .2"x0.9"
  • Weight: 2.1 oz.

  • Brand: Extech, Model: DVA30
