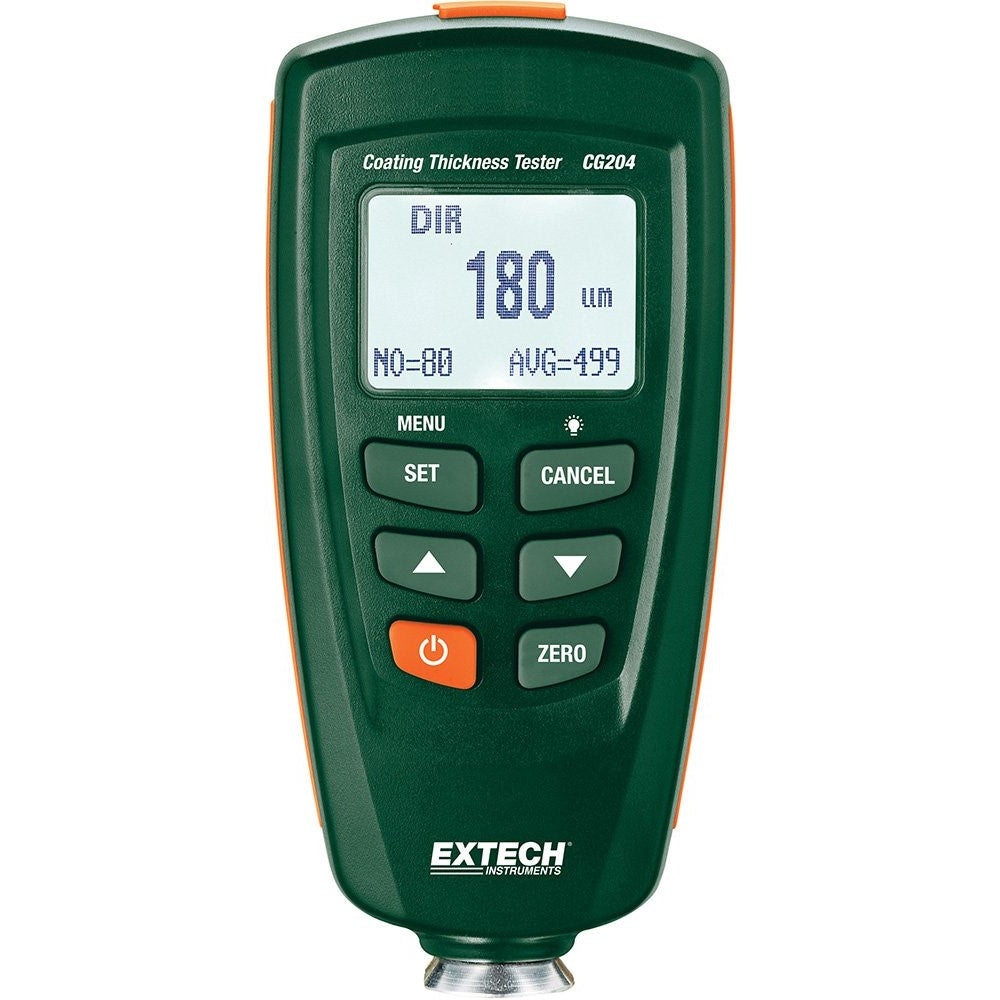

Extech CG204 Coating Thickness Tester

Automatic recognition of ferrous and non-ferrous substrates

Two measuring modes (single and continuous)

Two working modes (direct and group)

User-settable high/low alarms

Memory stores 400 readings (80 direct and 320 group)

Two measuring modes: single and continuous Two working modes: direct and group Memory stores 400 readings: 80 direct and 320 group User-programmable high/low alarms. Min./Max./Average. Resolution|Decimal Inch 0.1µm (0,004 mils.) Basic Accuracy ±3% Dimensions 4.7" x 2.4" x 1.25" (120mm x 62mm x 32mm) For Use With Ferrous & Non-Ferrous Substrates Measuring Range 0 to 1,250µm, 0 to 49 mils. Minimum Diameter Ferrous: 7mm (275.6 mils.); Non-Ferrous: 5mm (196.9 mils.) Minimum Radius of Curvature Ferrous: 1.5mm (59.06 mils); 3mm (118.1 mils.) Minimum Thickness Ferrous: 0.5mm (19.69 mils.); Non-Ferrous: 0.3mm (11.81 mils.) One or two point calibration. Includes: (2) AAA batteries. USB cable & software. Calibration iron. Precision standards. Pouch case.
Brand: Extech, Model: CG204
