Elenco Logic Probe Solder Kit [ SOLDERING REQUIRED ]

Handy device for inspecting and measuring logic circuits

Displays logic levels (high or low); pulses and voltage transients down to 25 nanoseconds

Maximum input of 20MHz

Large PC board and detailed manual for fast and easy construction

SOLDERING REQUIRED - ASSEMBLY REQUIRED

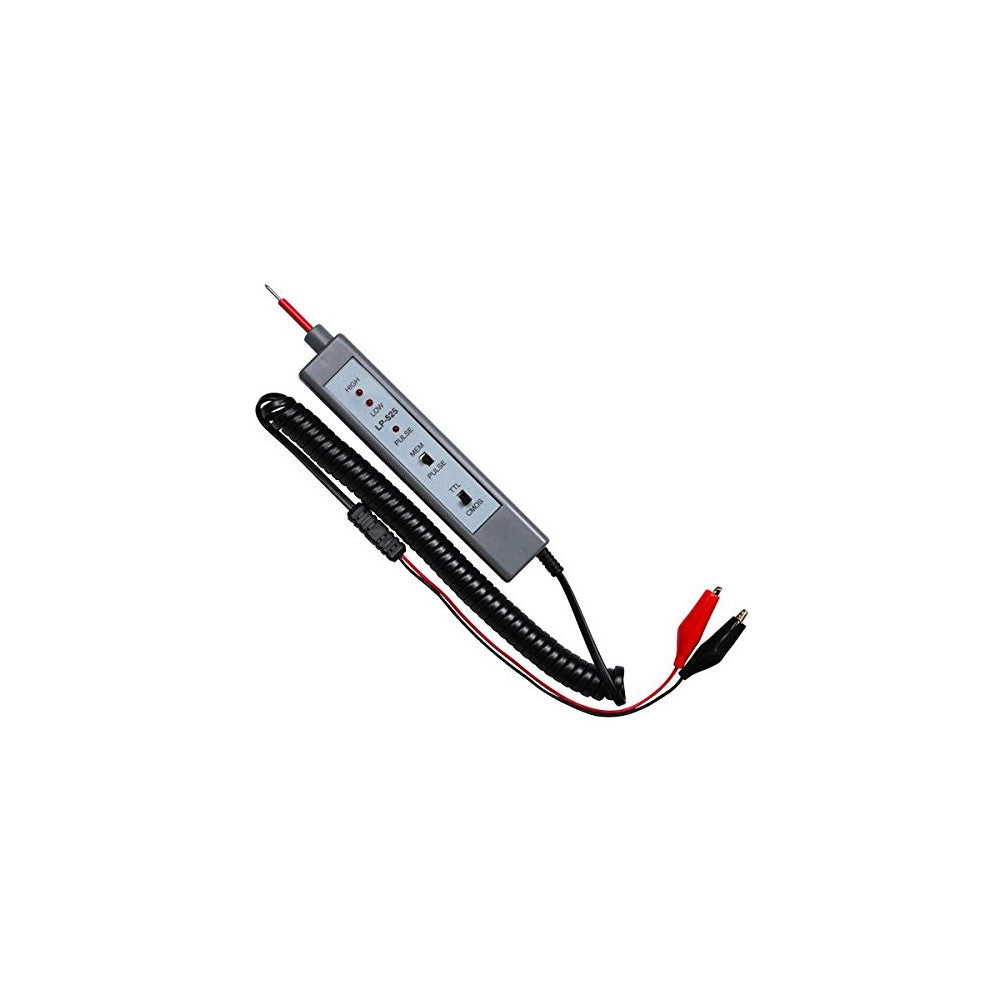

The LP-525K Logic Probe kit is a convenient and precise instrument for use in the measurement of logic circuits. It displays logic levels (high or low), and voltage transients down to 25 nanoseconds. The LED readouts provide instant response to the logic state. Large PC board and detailed manual for fast and easy construction. For 30 years Elenco has been using their strong engineering and design skills to develop reliable, affordable electronic test equipment, tools, and educational kits. SOLDERING REQUIRED - ASSEMBLY REQUIREDSPECIFICATIONS - Input Impedance: 1M - Input Overload Protection: 35V DC continuous - Thresholds: Logic 1: TTL 2.3 .25V - Logic 0: 0.80V .1V - CMOS: 70% Vcc 30% Vcc - Response better than: 25 nanoseconds - Pulse Detector: 1.5 millisecond pulse stretcher - Power Requirements: 5V Vcc30mA - 15V Vcc40mA - Operating Temperature: 0 degrees C to 40 degrees C - SOLDERING AND ASSEMBLY REQUIRED
Brand: Elenco, Model: LP-525K
