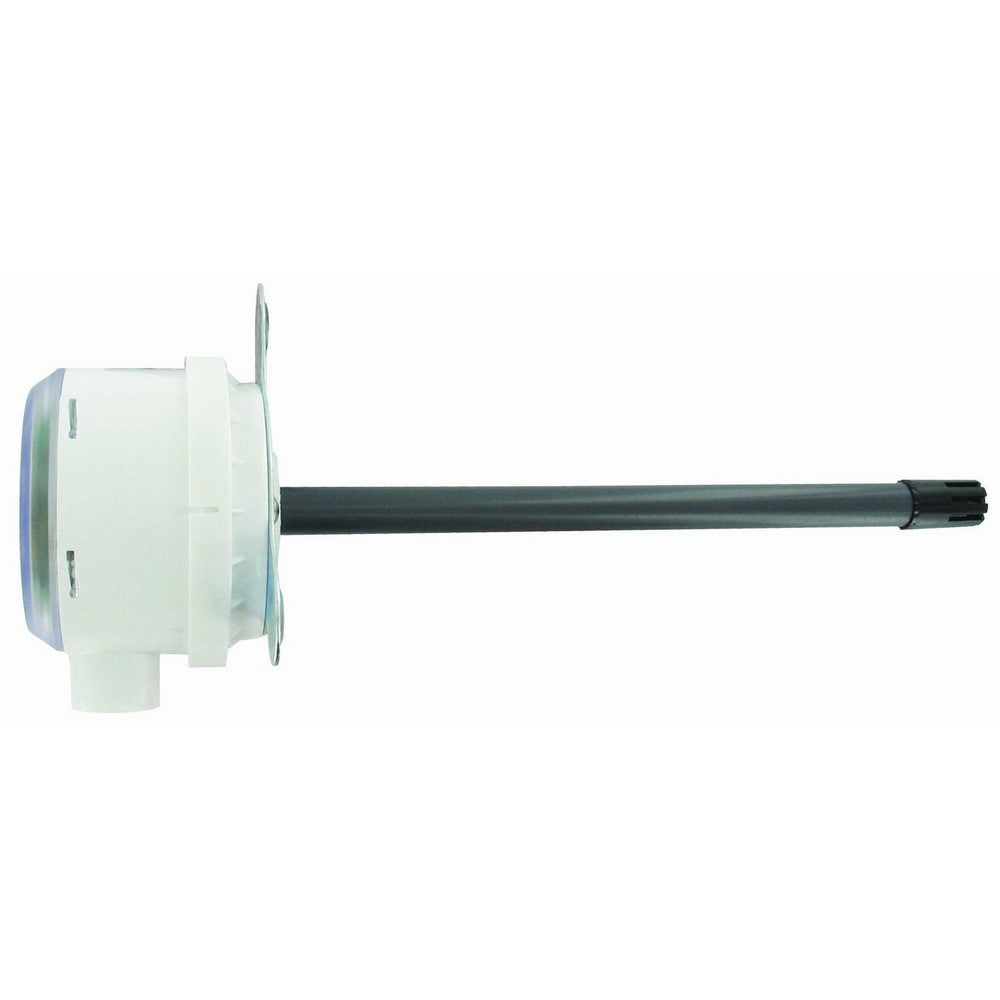

Dwyer Series RHP RH/Passive Temperature Sensor Transmitter, Duct Mount with Membrane Filter, 4-20 mA RH Output, 4-20 mA Temperature Output

MANUFACTURER DIRECT

Temperature Sensor: Types 1, 2, 3: Solid state band gap.

Accuracy, RH: RHP-2XXX ±2% 10-90% RH25°C.

Temperature Limits: Operating: -40 to 140°F (-40 to 60°C); Storage: -40 to 176°F (-40 to 80°C).

4-20 mA Loop Powered Models: Power Requirements: 10-35 VDC. Output Signal: 4-20 mA.

The Series RHP Temperature and Humidity Transmitter combine the voltage or current humidity transmitter output with a passive temperature thermistor or RTD output. The polymer capacitance humidity sensor is not affected by condensation, fog, high humidity, or contaminants. The humidity sensors are available with 2% or 3% accuracies. Duct mounted transmitters are available with an optional two-line alpha numeric LCD display. The Series RHP is available with interchangeable filter options as well as replaceable sensors.
Brand: Dwyer, Model: RHP-2D11, Size: 4-20 mA Temperature Output
