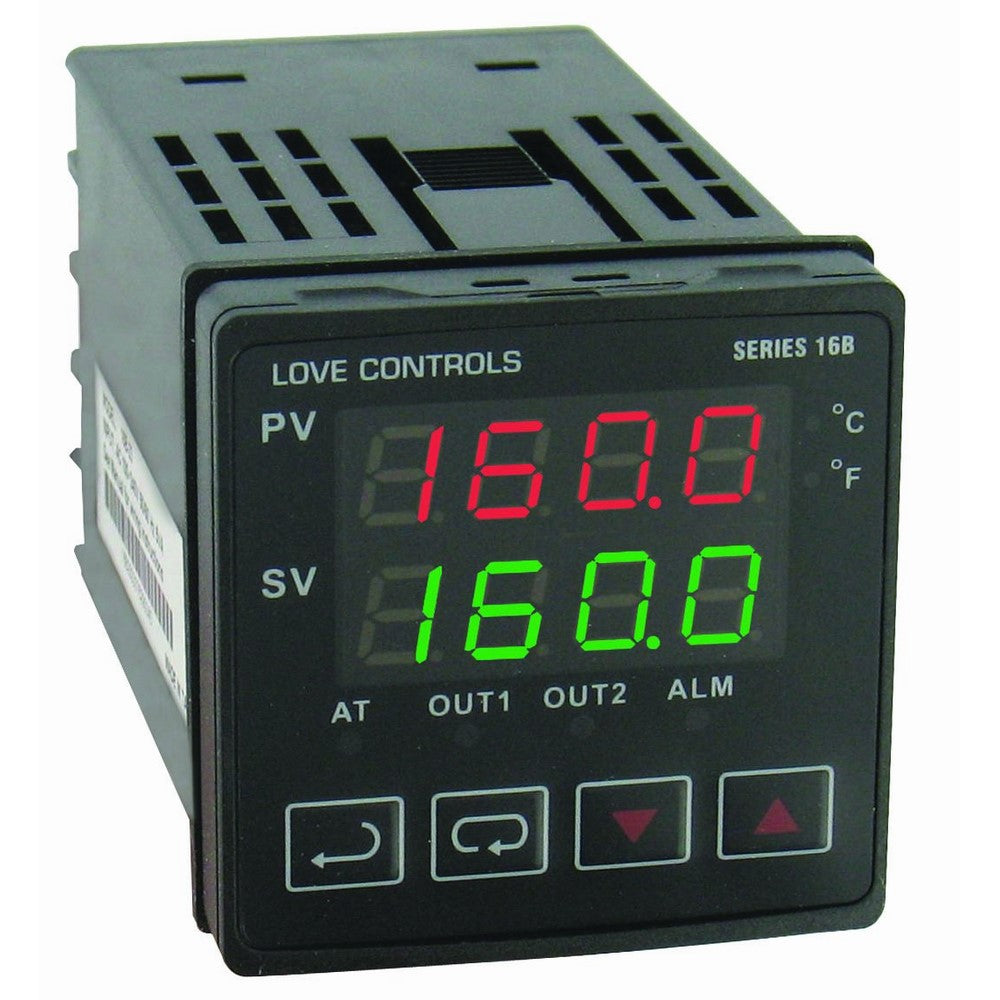

Dwyer Love Series 16B 1/16 DIN Temperature and Process Controller, Relay Outputs 1 and 2
Out Of Stock
Dwyer
SKU: EZFB009P8JPMW
Quick Overview
Panel-mount temperature and process controller accepts input from DC voltage, DC current, thermocouple probes, or RTD probes for controlling and monitoring industrial processes or temperature applicationsTwo output controls allow direct or reverse dual loop controlFour-digit dual-line LED presents the process value in red and the set point in greenFront cover...
The Dwyer Love Series 16B 1/16 DIN panel-mount temperature and process controller has two output controls and a four-digit, dual-line LED. This controller accepts input from DC voltage, DC current, thermocouple probes, or RTD probes for controlling and monitoring industrial processes or temperature applications. Its two output controls allow direct or reverse dual loop control. The four-digit dual-line LED presents the process value in red and the set point in green, and indicates output status, engineering scale, auto tuning, and alarm status. It includes on/off, proportional-integral-derivative (PID), self-tune, and manual tune control methods as well as two configurable alarms and 13 built-in alarm functions. It can output data to a PC or PLC (programmable logic controller) via the RS-485 interface for analysis and process integration.
The panel is Ingress Protection certified IP56 for protection against dust and water jets, and it conforms to 1/16 DIN size for industry-standard mounting. The European Conformity (CE) marking indicates compliance with applicable European Union directives, and it is compliant with Restriction of Hazardous Substances (RoHS) standards.
Specifications
| Input sensor types | Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK 3-wire platinum RTD: Pt100, JPt100 Analog: 0 to 5V, 0 to 10V, 0 to 20 mA, 0 to 50 mV |
| Input voltage | 100 to 240VAC 50/60 Hz or 24VDC (depending on model) |
| Operation voltage range | 85% to 110% of rated voltage |
| Power consumption | 5VA max. |
| Control output | Relay output: SPDT (SPST: 1/16 DIN and 1/32 DIN size), Max. load 250 VAC, 5 amp resistive load Voltage pulse output: DC 14V, Max. output current 40 mA. Current output: DC 4 to 20 mA output (Load resistance: Max. 600) Linear voltage output: 0 to 5V, 0 to 10V |
| Communication | RS-485 |
| Standards met | CE, RoHS, UL, cUL |
| Waterproofing | IP56 |
| Weight | 4 oz./114 g |
H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Dwyer Instruments manufactures measurement and control instruments, including pressure gauges, flow meters, level instrumentation, temperature instrumentation, and air quality monitors. The company, founded in 1931, is headquartered in Michigan City, IN.
Brand: Dwyer, Model: 16B-33, Size: Relay Outputs 1 and 2
