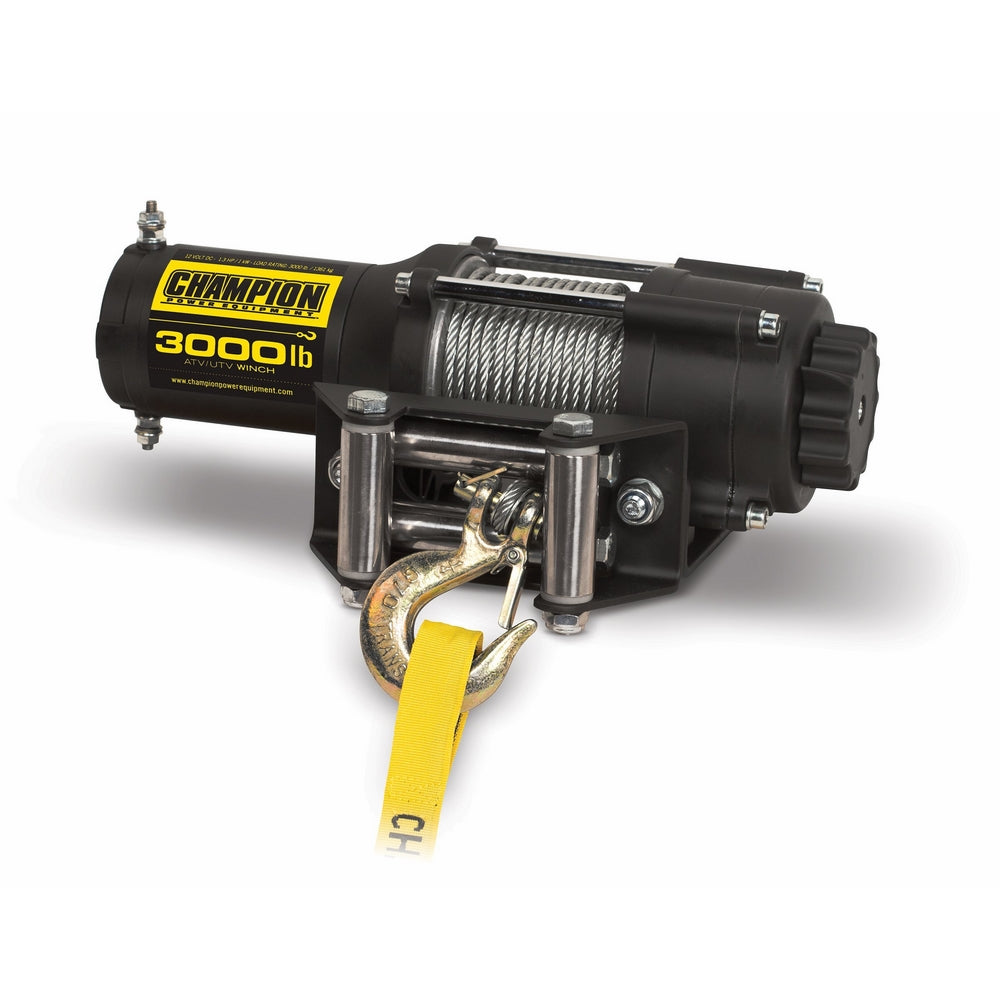

Champion 3000-lb. ATV/UTV Winch Kit

Champion Power Equipment
SKU: DIDB00AX19UMU
Regular Price $117.27 Sale Price Unit price: $0.00

Quick Overview

Brand Champion Power Equipment Model 13004 Powerful - 3000 lb. max rated line pull and 1 HP permanent magnet motorBonus Accessories - Roller fairlead, mounting channel, handle bar mounted remote control49 ft. super duty aircraft cable with rugged, latched clevis hookEfficient planetary gear and dynamic braking systemsChampion Support - 2...
Brand Champion Power Equipment
Model 13004

  • Powerful - 3000 lb. max rated line pull and 1 HP permanent magnet motor
  • Bonus Accessories - Roller fairlead, mounting channel, handle bar mounted remote control
  • 49 ft. super duty aircraft cable with rugged, latched clevis hook
  • Efficient planetary gear and dynamic braking systems
  • Champion Support - 2 year limited warranty with FREE lifetime technical support


  • The Champion Power Equipment 13004 3000-lb. ATV/UTV Winch Kit includes everything you need to start winching, including a mounting channel, a roller fairlead and a remote control. With a rated line pull of 3000 pounds, mount this winch on your ATV or side by side with the mounting channel to quickly harness the strength of its 1.3-horsepower (12-volt) DC permanent magnet motor. The 46-foot by 3/16-inch galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 1.5 by 3.2-inch drum through the reliable roller fairlead to maximize the life of the cable. The three-stage planetary gear system along with the free-spooling clutch and handlebar-mounted remote control offer excellent control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you'll have the stopping power you need for each job. With a gear reduction ratio of 171:1, the winch boasts a line speed of 4.3 feet per minute with a full load, and 8.9 feet per minute with no load. Accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power. Offering much more than a motor and a spool of rope, the Champion 3000-lb. Winch Kit is a necessary tool for any situation you might encounter. Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.
