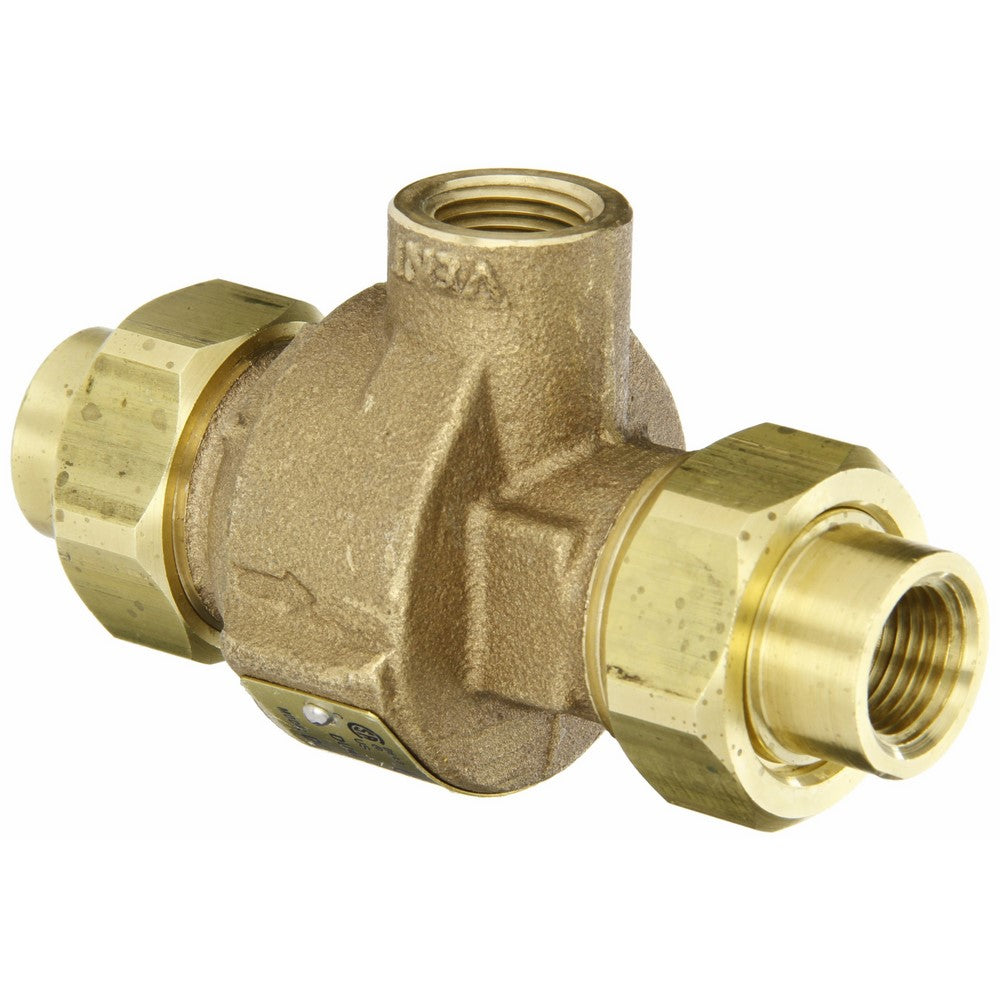

Apollo 404A33AM Bronze Dual Check Valve with Atmospheric Port, 1/2" NPT Female

Corrosion resistant

Low head loss

Independently acting check valves

Ease of repair and installation

5 Year domestic warranty

The Apollo DCAP Series Backflow Preventer is designed to protect residential and commercial water supply lines from back-siphonage or back-pressure of non-potable (non-hazardous) substances. It has an intermediate atmospheric vent to insure protection from backflow conditions. It consists of two independently acting and spring-loaded check valves in a corrosion resistant material. During normal flow operation, the vent valve is closed, and the two check valves are open allowing flow of water through the unit. Each check valve is designed to hold at least 1 psi in the direction of flow. When a back-siphonage condition occurs, both check valves close and the atmospheric vent opens to permit air to enter the intermediate zone. In the event of back-pressure and if the second check valve is prevented from closing tightly, leakage will be vented to the atmosphere through the vent port. Economical and durable. Maximum working pressure 175 psig. Approved by ASSE 1012 and CSA. Inlet temperature range 33/210 degrees F. 5 year, domestic warranty. Maximum backflow temperature 250 degrees F. Bronze body. Stainless steel spring. EPDM C.V. Seat Discs. Seats, Spring and seat retainer, and poppets are Glass-Filled PPO. Nitrile/EPDM O-Rings.
Brand: Apollo Valve, Model: DCAP12, Size: 1/2"
