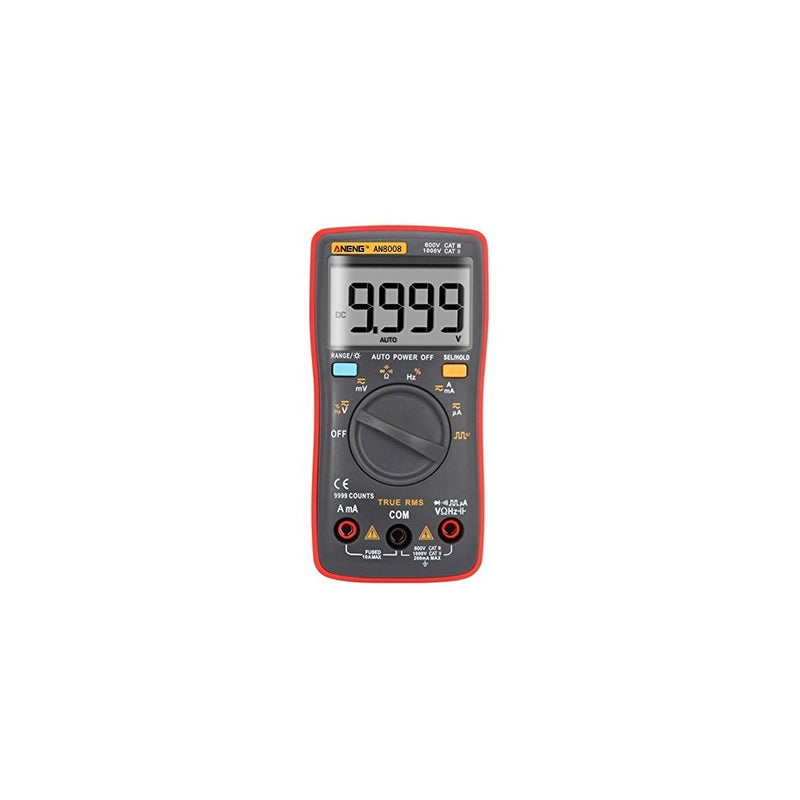

Alloet AN8008 True-RMS Digital Multimeter Square Wave Voltage Ammeter MAX Display 9999 Counts Auto/Manual Ranges True RMS

Frequency: 0.01Hz to 9.999MHz.

Capacitance: 0.001nF to 9.999mF.

AC volts: 0.001mV to 750V & DC volts: 0.001mV to 999.9V.

AC current: 0.01uA to 9.999A & DC current: 0.01uA to 9.999A.

Resistance: 0.01 to 9.999M.

Features: Auto/manual ranges True RMS 550V protection in Resistance, Capacitance and Frequency ranges Large LCD display, MAX display 9999 counts Sample rate: 3 times per second backlight Relative measurement Data hold Polarity identification Low voltage indication Square wave output 9.999A high current and low current measurement Auto power off Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing, Frequency and duty cycle. Frequency: 0.01Hz to 9.999MHz Capacitance: 0.001nF to 9.999mF AC volts: 0.001mV to 750V DC volts: 0.001mV to 999.9V AC current: 0.01uA to 9.999A DC current: 0.01uA to 9.999A Resistance: 0.01 to 9.999M Duty cycle: 1% to 99% Square Wave Output:50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/ 900Hz/1000Hz/2000Hz/3000Hz/4000Hz/5000Hz   Specifications: (1)Capacitance: 9.999nF(±5.0%20),99.99nF/999.9uF/9.999uF/99.99uF/999.9uF(±2.0%5), 9.999mF(±5.0%5) (2)DC volts: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V(±0.5%3) (3)AC volts: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V(±1.0%3) (4)DC current: 99.99uA/999.9uA(±0.8%3),999.9mA/9.999A(±1.0%3) (5)AC current: 99.99uA/999.9uA(±1.0%3),999.9mA/9.999A(±1.2%3) (6)Resistance: 99.99(±1.0%3),999.9/9.999K/99.99K/999.9K(±0.5%3),9.999M(±1.5%3) (7)Frequency: 99.99/999.9/9.999k/99.99k/999.9k/9.999M (±0.12) (9)Duty cycle: 1% to 99%(±0.1%2) (10) Measurement mode: Double-integral style A/D transform (11)Over range indication: OL (12) Working environment: 040, relative humidity <> (13) Supply power: 3V (1.5V AAA batteries x 2) (Not included) (14) Dimension: approx. 132 x 65 x 30 mm (15) Net Weight: approx. 113g
Brand: Alloet, Color: red
