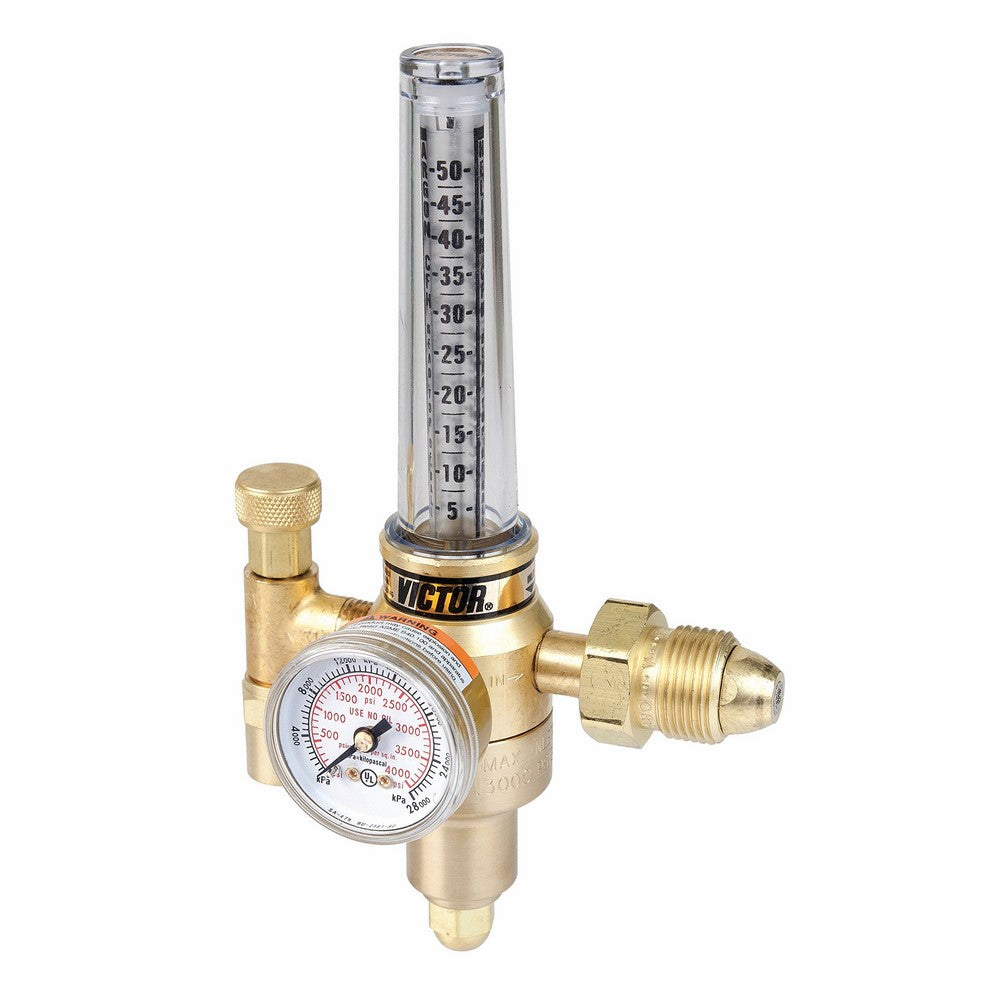

Victor Technologies 0781-2728 HRF-2480 Medium Duty Flow Meter Cylinder Argon/Carbon Dioxide Mix Regulator, 7.5-37.5 SCFH Flow Range, CGA 320/580 Inlet Connection

Gas Service: Carbon Dioxide, Carbon Dioxide Mix

Flow Range (SCFH): 7.5-37.5 (Argon)

CGA Inlet Connection: 320 (Carbon Dioxide), 580 (Nitrogen, Argon, Helium)

Maximum Inlet: 3000 psig, Outlet pressure: HRF 2480 Preset80 psig

HRF 2400 series regulator/flowmeter combination are specially designed for MIG, TIG, and other inert gas welding applications. Regulator / flow meter combination in one compact unit. MIG / TIG applications. Ideal for all applications where dependability is needed. Calibrated tube at 25 psig (not on HRF 2480). Machined brass body & housing cap. Back pressure compensated. Fabric reinforced neoprene diaphragm. Internal self reseating relief valve – not designed to protect downstream equipment. Sintered inlet filter – bronze. Cover tube contains overpressure protection.
Brand: ESAB, Model: 0781-2728, Size: 1-1/2"
