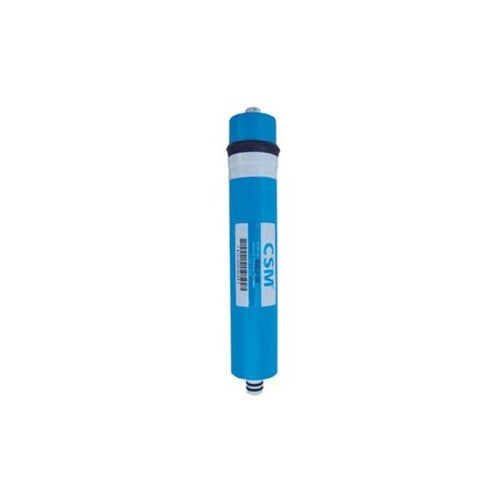

CSM Residential 50 GPD Thin Film Composite TFC Membrane For RO Reverse Osmosis System

Membrane Material: Polyamide (PA)

Element Configuration: Spiral Wound

Maximum Operating Pressure: 125 psi

Operating pH Range: 3.0 - 10.0

Made in Korean

This Standard Size Reverse Osmosis Membrane fits in a standard membrane housing like the one on the RO unit shown here. The same standard membrane housing can accommodate RO membranes with capacities ranging between 18-100 gallons per day (GPD). Element is interchangeable with GE Osmonics and Filmtec membranes. Average NaCl Rejection: 98% Permeate Flow60 PSI: 50 GPD Specifications are based on 500 mg/L NaCl solution at 60 psi net pressure (4.1 bar), 77°F (25°C), 15% recovery after 24 hours. Individual element flux may vary ± 15%. Click here to view a chart that shows which inorganic compounds can be removed from drinking water with this reverse osmosis membrane. If you would like to change your membrane to a capacity other than what was originally in your Reverse Osmosis System, you must change the drain flow control also. The membrane and drain flow restrictor are sized to go together
Brand: C.S.M, Model: RE1812-50
