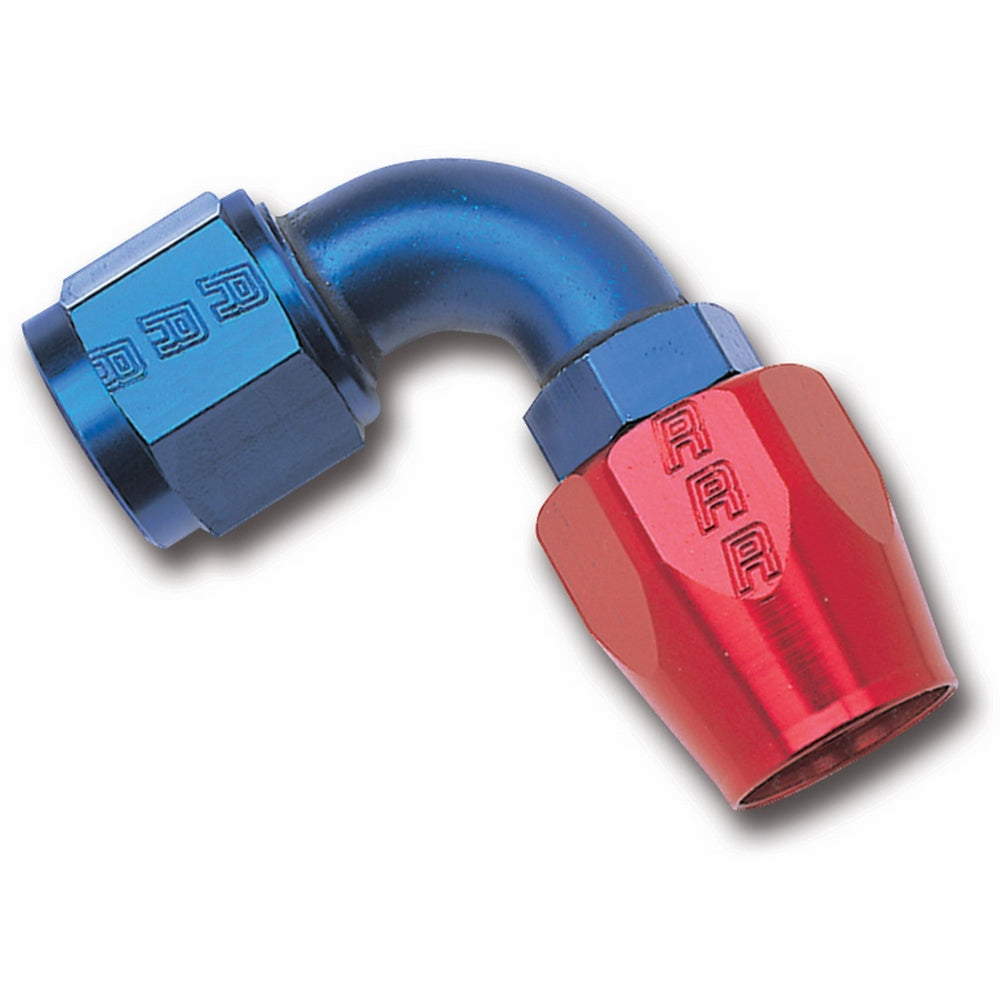

Russell 610160 Red/Blue Anodized Aluminum -6AN 90-Degree Hose End

Brand	Russell
Model	610160

Designed to be used with Proflex, Prorace and Proclassic hoses

Lightweight aluminum hose ends are completely reusable

Unique taper design ensures easy assembly

37 degree angled sealing surface guarantees a positive anti-leak seal (does not require a sealing compound or Teflon tape)

Accepts a wide variety of lightweight aluminum AN style adapter and carburetor fittings

The Edelbrock/Russell 90 Degree Single Full Flow Hose End's swivel mating nut is machined from billet aluminum. The primary adapter ring is separately machined at a 37 degree angle to assure a positive connecting surface. The stainless steel holding pin secures the mating nut to the main seal body providing a full and unobstructed swivel. All angles are mandrel bent, eliminating sharp changes in direction for optimum flow. Enlarged flats on the socket provide an excellent non-slip gripping surface. The hex designed brazed nipple provides a greater holding area for greater strength and easier assembly. The taper design provides straight through connection with easy alignment upon assembly, eliminating loose pieces of rubber within the flow area.
