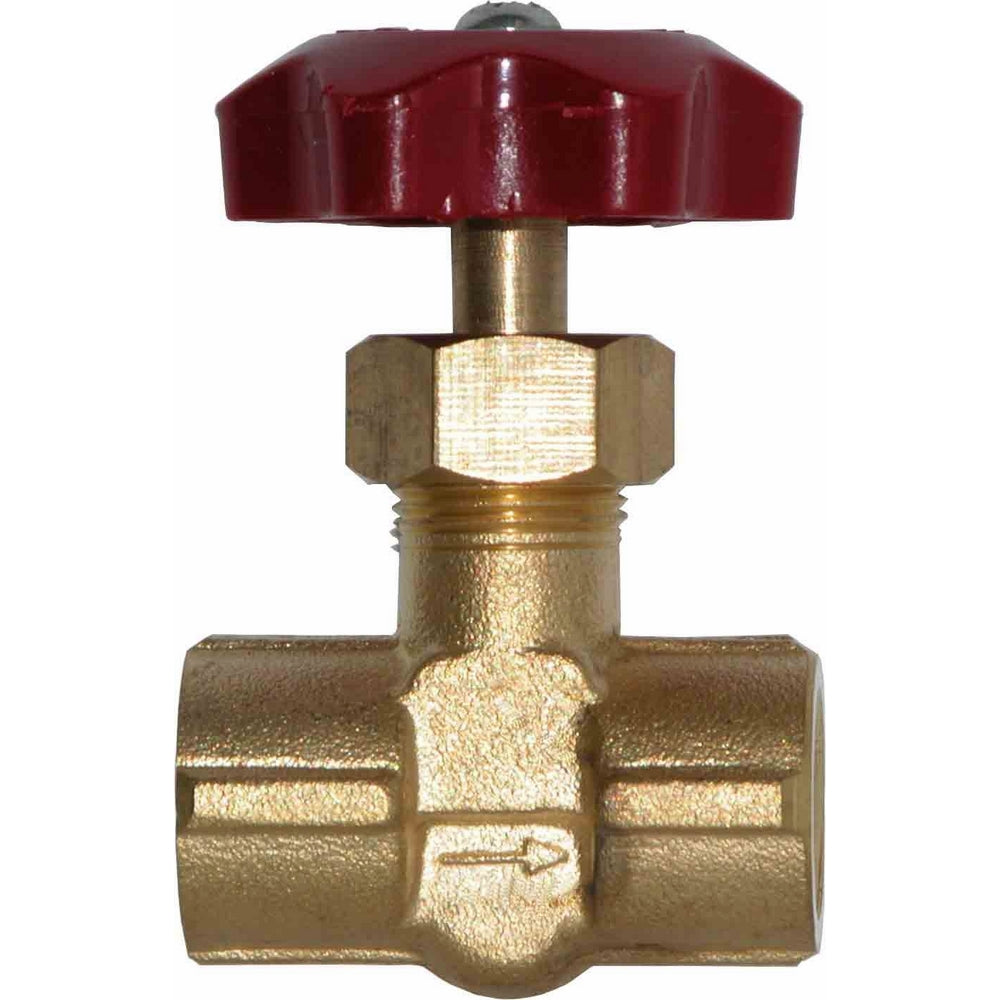

Winters SNV510LF SNV-LF SERIES (LEAD-FREE) 1/4" NPT F X F NEEDLE VALVE

1 In Stock

Be the first to review this product

Winters Instruments

SKU: MIDB00GD8O8UQ

$25.08

Qty

Add To Cart

Add to wishlist Add to compare

Delivery by date: Tue May 20 2025

Quick Overview

Brand Winters Instruments Model SNV510LF An isolation valve for pressure gauges and transmittersLead free forged brass Body, Shaft, and Nut1/4" NPT Female x Female ConnectionCRN registered1 year warrantyApplications: Provides precision flow control for any non-corrosive application up to 400 psi (2,758 kPa). For mild applications, this valve can be used...

Brand	Winters Instruments
Model	SNV510LF

An isolation valve for pressure gauges and transmitters

Lead free forged brass Body, Shaft, and Nut

1/4" NPT Female x Female Connection

CRN registered

1 year warranty

Applications: Provides precision flow control for any non-corrosive application up to 400 psi (2,758 kPa). For mild applications, this valve can be used to throttle pulsation. CRN Registered. Warranty: 1 Year. Body: Forged Lead Free Brass. Handle: ABS plastic, dyed red. O-Ring: Rubber. Shaft: Lead Free Brass. Nut: Lead Free Brass. Process Temperature: -9°F to 212°F (-23°C to 100°C). Maximum Operating Pressure: 400 PSI (2758 KPA). Connection: 1/4" NPT Female x Female.
