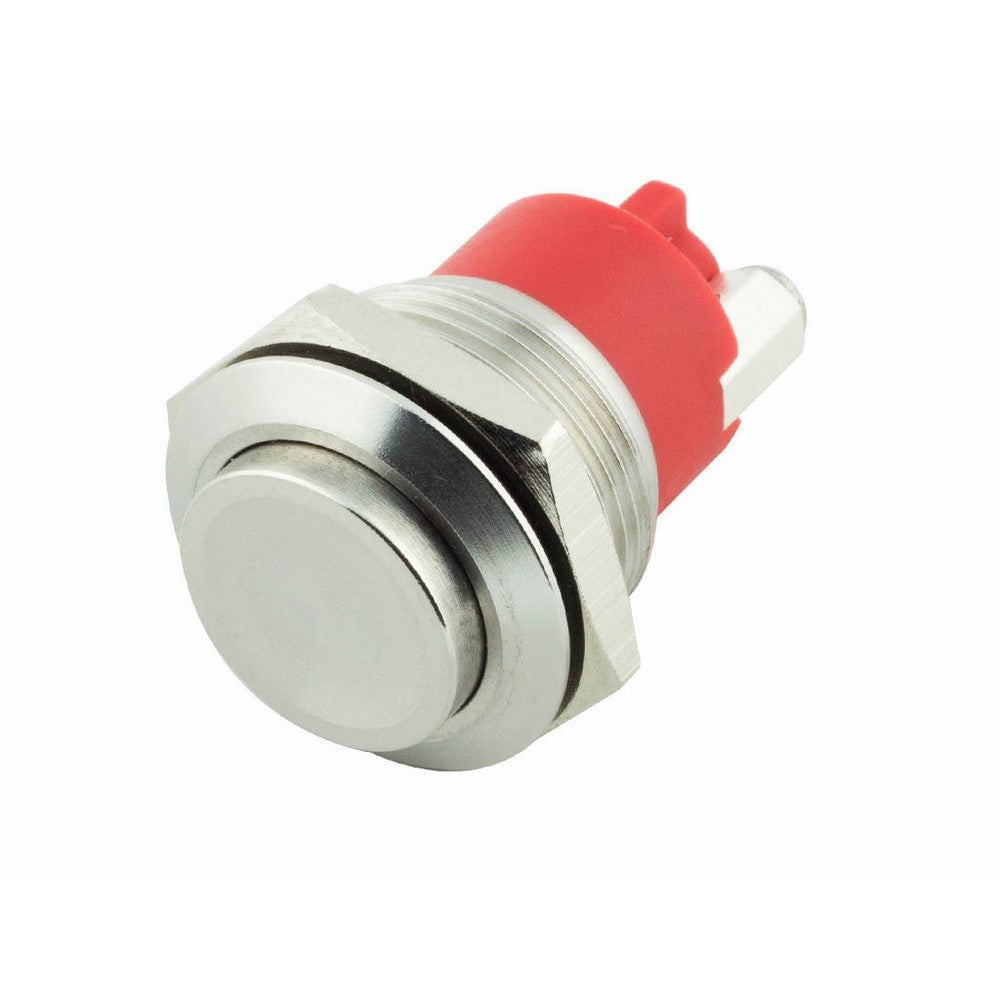

Alpinetech 19mm 3/4" Waterproof Momentary Stainless Steel Metal Push Button Switch Screw Terminal Extended Button Normally Open 1NO

Out Of Stock

Be the first to review this product

Alpinetech

SKU: EZFB00FNZAQN8

$19.94

Qty

Add to wishlist Add to compare

Quick Overview

Momentary Type - Push & Hold ON, Release OFFEasy installation with screw terminalsHighest IP68 waterproof protection for used in wet/marine enviroment.Stainless Steel material for resistant to wear and abrasion.Great for electronmagnetic Starter, relay, Horn Button Switch, PC Power Switch or any circuit controls.Mounting Cut Hole: 19mm (3/4") Head Diameter: 22mm...

Momentary Type - Push & Hold ON, Release OFF

Easy installation with screw terminals

Highest IP68 waterproof protection for used in wet/marine enviroment.

Stainless Steel material for resistant to wear and abrasion.

Great for electronmagnetic Starter, relay, Horn Button Switch, PC Power Switch or any circuit controls.

Mounting Cut Hole: 19mm (3/4") Head Diameter: 22mm Operation Type: Momentary Switch Contact: 1NO (Normally Open) Button Type: Raised/Extended Max Switch Rating: 5A/250VAC Terminal Type: Screw Body Material: Stainless Steel Button Material: Stainless Steel Contact Material: Silver Plated Gold Protection Rating: IP68/IK10 Operation Temperature: -20C - 55C Panel Thickness: 1 - 10mm Depth Behind Panel: 26mm Mechanical Life: 1,000,000 Cycles
Brand: Alpinetech

Alpinetech 19mm 3/4" Waterproof Momentary Stainless Steel Metal Push Button Switch Screw Terminal Extended Button Normally Open 1NO
