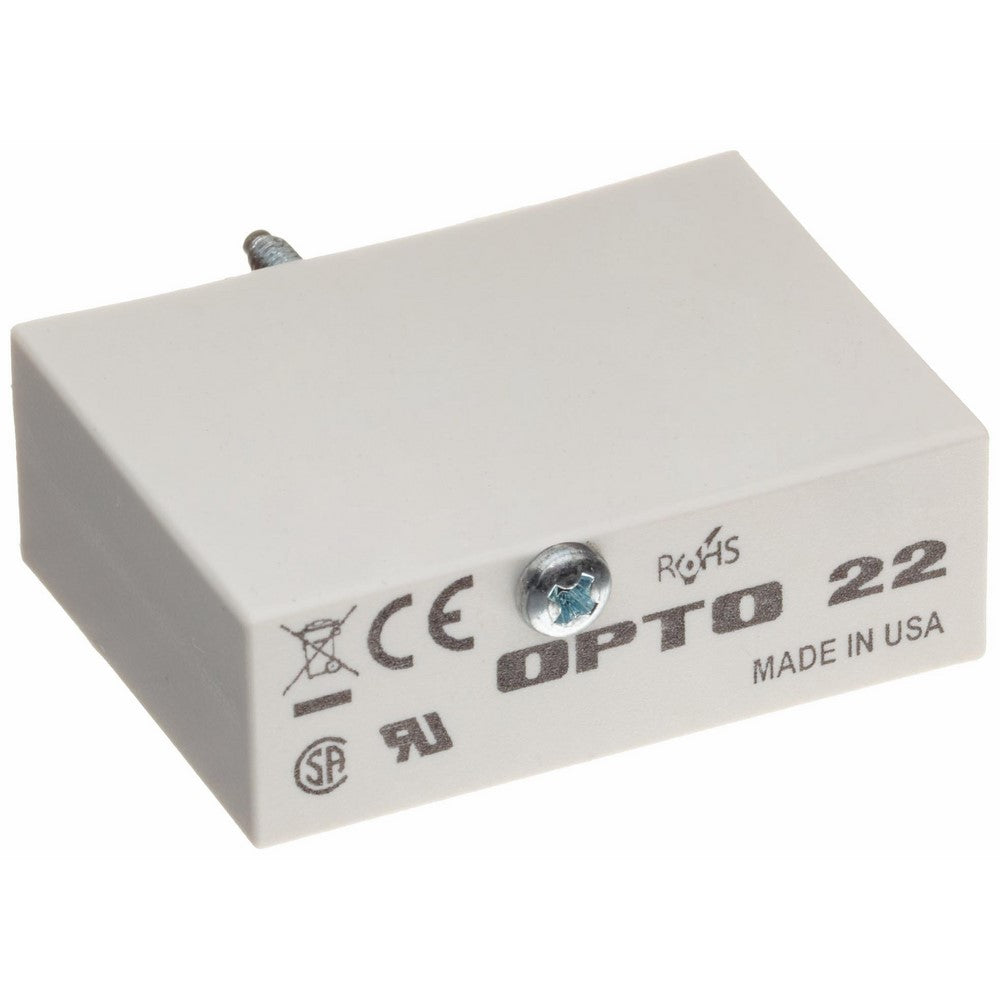

Opto 22 IDC5 Standard DC or AC Input Modules, 10-32 VDC or 12-32 VAC, 5 VDC Logic, 4000 Volts I/O Isolation, 25mA Input Current

Rugged construction

Up to 4000 volts of optical isolation (transient)

Most have a bridge-rectifier input, and accept AC or DC inputs

Input modules are used for sensing on/off voltage levels

Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the output side of the circuit

The IDC5 can act as either a DC or AC input, accepting 10-32 VDC or 12-32 VAC. All AC and DC input modules have a bridge-rectifier input. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the output side of the circuit. Input modules are used for sensing ON/OFF voltage levels. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the output side of the circuit. Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as: proximity switches, limit switches, selector switches, push buttons, photoelectric switches, ttl-compatible devices, float switches, toggle switches, thermostats. Operating ambient temperature: - 30 to 70 degree C. Isolation, input-to-output (transient): 4000 V. Output voltage drop: logic side: 0.4 volts at 50 mA. Output current: 50 mA. Output leakage with no input IDC5D only: 0.1 mA at 30 VDC. Transistor: 30 volts breakdown.

Underwriters Laboratory, IEC 950: 1991-09, 89/336/EEC, 2002/95/EC
Brand: Opto 22, Model: IDC5
