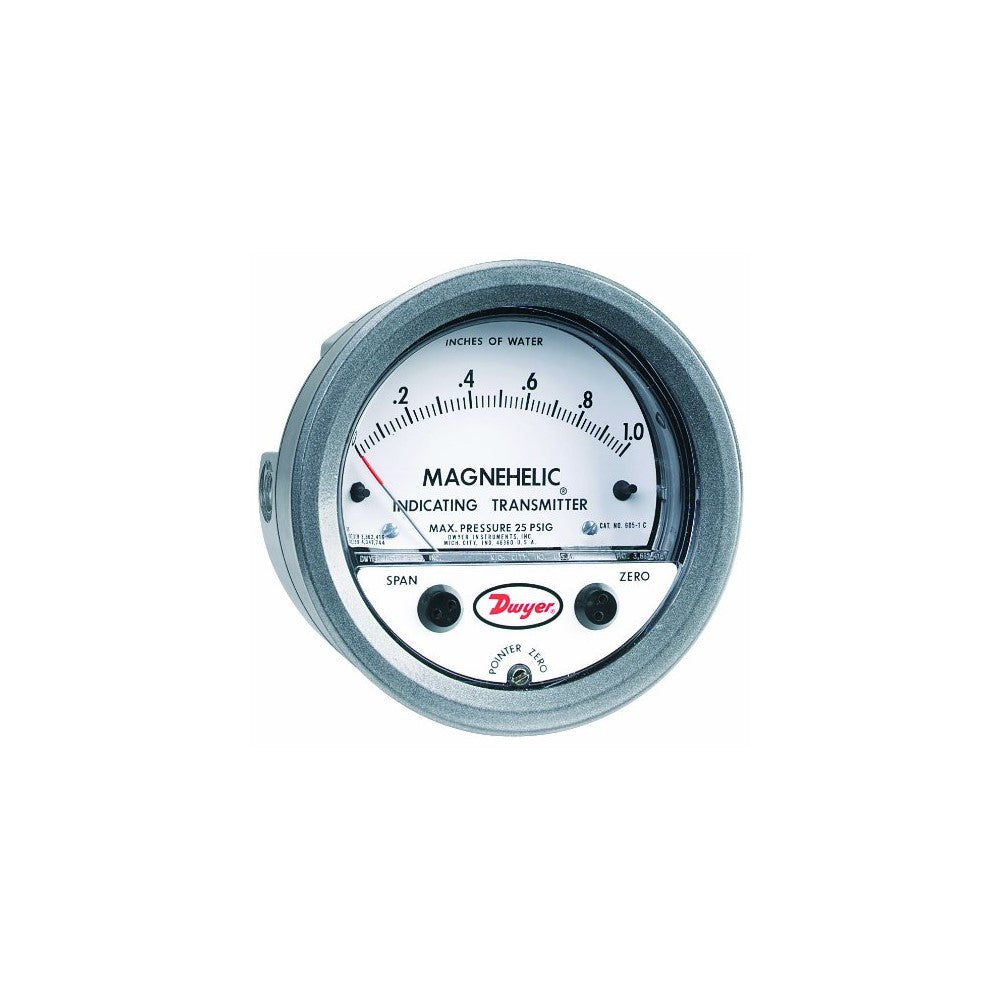

Dwyer Magnehelic Series 605 Differential Pressure Indicating Transmitter, 0-10"WC Range

Price For: Each Includes: Span and Zero Adjust Tool and Mounting Hardware Kit Power Required: 10 to 35VDC Connection: 1/8" NPT Output: 4 to 20 mA DC Item: Pressure Transmitter Output Accuracy: /-2% Full Scale Loop Resistance: 0 To 1250 Ohms Pressure Range (In. WC): 0 to 10 Pressure Range Minor Div.: 0.20" WC Country of Origin (subject to change): United States

The Series 605 Magnehelic Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the two-wire, 4-20 mA control signal utilizing the time-proven Dwyer Magnehelic gage mechanical design and Series 600 transmitter technology. The two-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply.
Brand: Dwyer, Model: 605-10, Size: 10" WC
