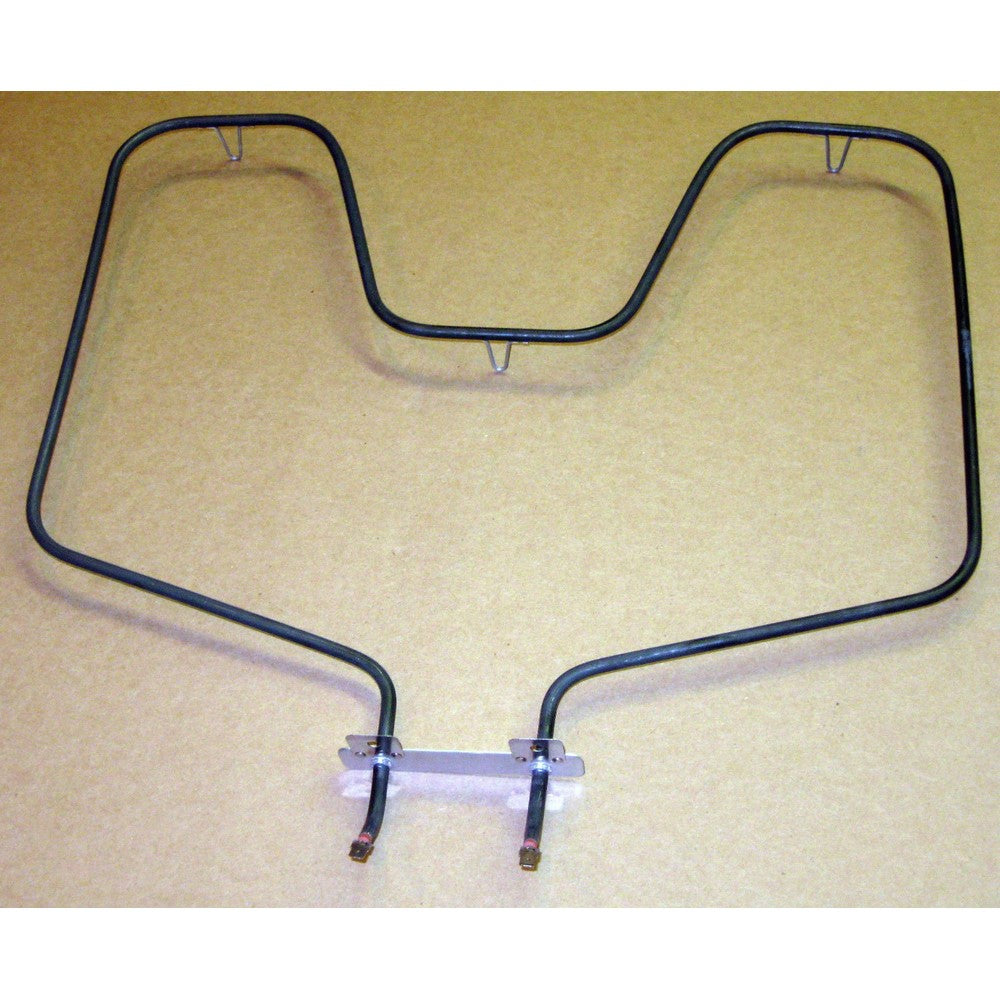

General Electric Range Bake Element Replacement Replaces WB44K10005, WB44K10001

This bake element can solve many oven range problems, including too much or too little heat

Dimensions: 17 3/4" Wide x 15 1/2"

240 volts, 2585 watts I

Replacement bake element for General Electric Part Number WB44K10005. Dimensions: 17-1/4" Width, from Side to Side at the widest spot 15 1/2" Length, from mounting bracket to back 2-3/8" From end of terminal to the mounting bracket (measuring up at an angle) 2 5/8" between each terminal, Terminals are male spade type Calrod is bent up at then end towards 2 mounting holes 2585 Watts 240 Volts Replacement for numbers WB44K10005, WB44K10001, PS249348 and AP2030964 It is designed to fit specific General Electric manufactured range models including Hotpoint and RCA.
Brand: UNB
