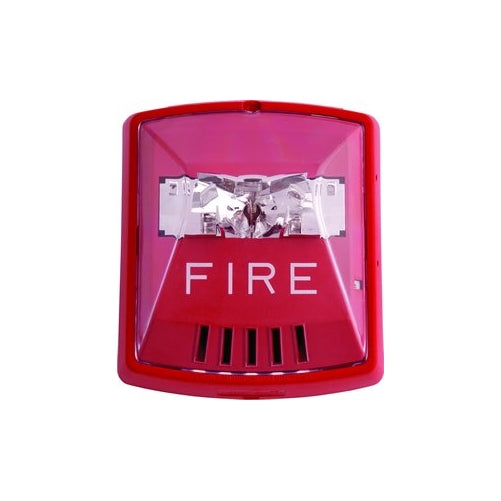

Wheelock HSR Exceder Fire Alerting Strobe Horn RED,2W,Wall Mount, 12/24V, 8CD

Two wire connection to fire alarm panel

3 audible settings, 8 candela settings in 1 device: 15/1575/30/75/95/110/135/185

A combination of 12 and 24 VDC in one appliance providing the capability to use a single appliance for different installation requirements

A universal, common base for retrofit jobs, limited space environments and pre-existing wire configurations. It comes complete with a Contact Cover for protection against dirt, dust, paint and damage to the contacts. The Contact Cover also acts as a shunting device to allow pre-wire testing for common wiring issues

- Wheelock Exceder horn strobe- Horn Strobe wall mount red- Visible candela window with 8 selectable candela settings- Selectable 12 & 24 VDC- 3 Audible settings 90 95 99 dB (anechoic)- Voltage test points- Universal mounting base 1-gang 2-gang 4” square 3.5” octal 4” octal back boxes- Finger slide switches for audio and visual settings- Approvals: UL CSFMWHHSR
Brand: Wheelock, Model: WH-HSR
