Alto Professional ZMX52 | 5-Channel 2-Bus Mixer with 6 Inputs, 2-Band EQ per Channel & 18V Phantom Power

Out Of Stock

Be the first to review this product

Alto Professional

SKU: EZFB004TM31QK

$85.00

Qty

Add to wishlist Add to compare

Quick Overview

Compact mixer for live sound, mobile A/V, DJ and home studio use(6) total inputs including an XLR jack with phantom power and EQ on Channel 1RCA inputs & outputs for connectors for seamless integration of A/V gear1/4-Inch input for channels 2-5; use mono or stereo with dedicated balance control for...

Compact mixer for live sound, mobile A/V, DJ and home studio use

(6) total inputs including an XLR jack with phantom power and EQ on Channel 1

RCA inputs & outputs for connectors for seamless integration of A/V gear

1/4-Inch input for channels 2-5; use mono or stereo with dedicated balance control for stereo groupings

Ultra-low noise discrete mic pre with 18V Phantom power; compatible with condenser and dynamic mics

Switchable Aux input (to headphones or main mix)

Precision 4-segment LED metering for visual confirmation of signal clipping and overall level

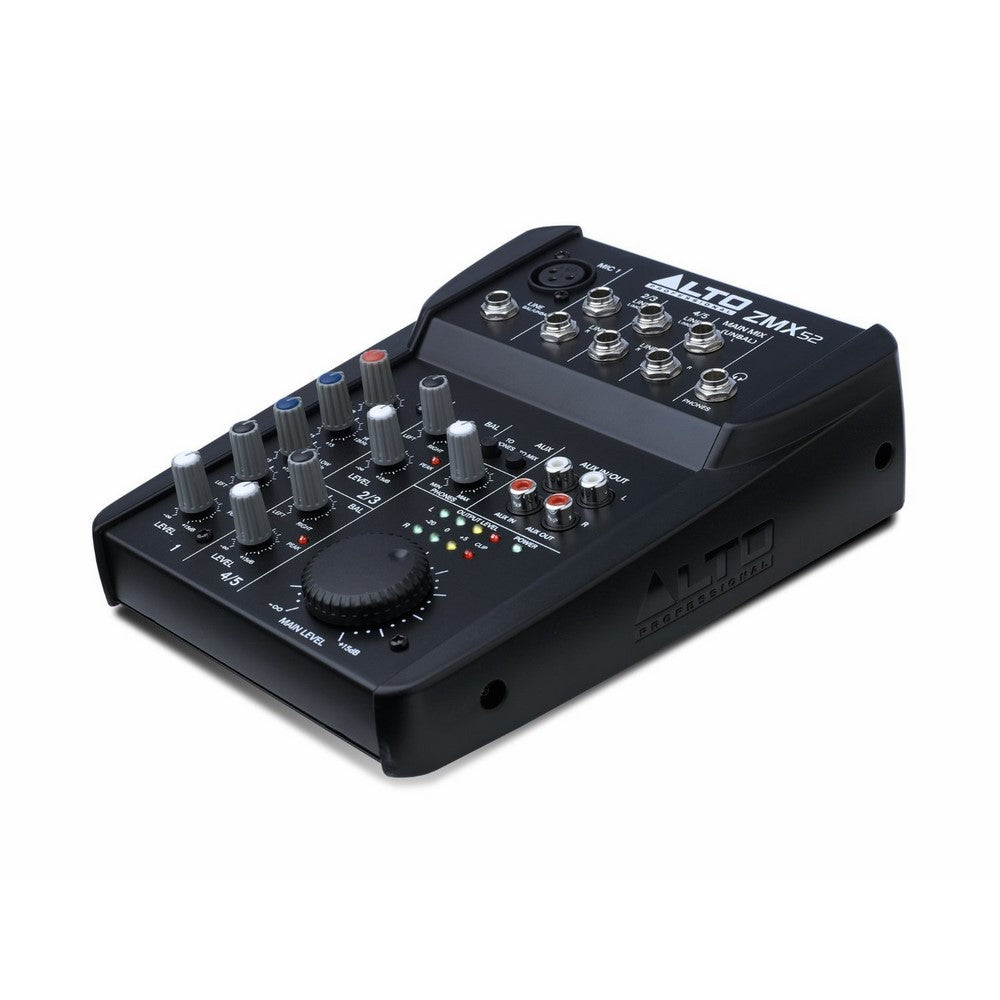

Alto Professional's ZEPHYR ZMX52 is a 5-channel mixer with all the essential inputs, outputs, and EQ for solo gigs and multimedia studios.

It features one mono channel with a microphone input (Phantom Power included), balanced TRS input, and a two-band EQ.

ZMX52 also delivers two stereo channels with two balanced TRS inputs each, and you have a dedicated stereo output to send to a recorder in addition to the main stereo outputs.

Choose the ZMX52 as the audio central command for your live performances, home studio, or video suite.

Technical Specifications

FREQUENCY RESPONSE

All inputs: 20 Hz – 22,000 Hz (±1 dB)

THDN

All inputs: < 0.005%="" (="" 4="" dbu,="" 1,000="">

GAIN RANGE

Mic inputs (Channel 1): 0 – 44 dB

Line input (Channel 1): 12 – 30 dBu

Line inputs (Channels 2-5): 0 dBu

MAX VOLTAGE GAIN

74 dB (MIC INPUT to MAIN MIX OUTPUT and AUX OUTPUT)

80 dB (MIC INPUT to PHONES OUTPUT)

30 dB (LINE INPUT to MAIN MIX OUTPUT)

SNR: All inputs: > 110 dBu

IMPEDANCE

Mic inputs: 3.9 k

All other inputs: > 10 k

Aux output : 1 k

All other outputs: 120

EQUALIZATION

High: ±15 dB12,000 Hz

Low: ±15 dB80 Hz

CROSSTALK

Adjacent inputs: < -80="" db="" ="" 1,000="">

Inputs to outputs: < -75="" db="" ="" 1,000="" hz="" (stereo="" l/r,="" channel="" 1,="" panned="" hard="" left="" or="">

MAIN MIX

AUX OUTPUT, PHONES OUTPUT: 0 dBu, unbalanced, 1/4” jacks

Max output: 22 dBu, unbalanced, 1/4” jacks

Bus noise: < -90="" db="" ="" 20="" hz="" ="" 22,000="" hz="" (channel="" and="" main="" mix="" levels="" at="" 0="" db,="" others="" at="">

POWER SUPPLY: 18 V, 500mA

POWER CONSUMPTION: 9 W

DIMENSIONS (width x depth x height): 5.1” x 8” x 1.5”

WEIGHT: 1.65 lbs

Box Contents

ZEPHYR mixer

Power adapter

Quickstart Guide

Safety Instructions & Warranty Information booklet

Brand: Alto Professional, Model: ZMX52, Size: 5-Channel / 2-Bus
