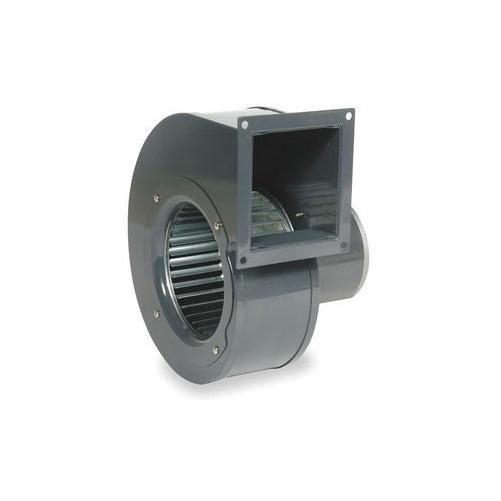

Dayton 1TDT2 Blower, 549 CFM, 115V, 2.05 Amp, 1640 rpm

1 In Stock

Be the first to review this product

Dayton

SKU: MIDB000BK859C

$229.21

Qty

Add To Cart

Add to wishlist Add to compare

Quick Overview

Brand Dayton Model 1TDT2 Rectangular oem blower with flangeVoltage 115, 1640 rpm, wheel dia. 6-1/4 inchDirect-drive blower with forward-curve wheels are oem replacementsGeneral heating, cooling, ventilating, or component cooling applicationsNot for use with speed controllersOEM Blower, Outlet Shape Rectangular, With/Without Flange With Flange, Wheel Dia. 6-1/4", Wheel Width 1-7/8", CFM0.000-In....

Brand	Dayton
Model	1TDT2

Rectangular oem blower with flange

Voltage 115, 1640 rpm, wheel dia. 6-1/4 inch

Direct-drive blower with forward-curve wheels are oem replacements

General heating, cooling, ventilating, or component cooling applications

Not for use with speed controllers

OEM Blower, Outlet Shape Rectangular, With/Without Flange With Flange, Wheel Dia. 6-1/4", Wheel Width 1-7/8", CFM0.000-In. SP 549, CFM0.100-In. SP 538, CFM0.200-In. SP 510, CFM0.300-In. SP 500, CFM0.400-In. SP 480, CFM0.500-In. SP 450, CFM0.600-In. SP 435, CFM0.700-In. SP 390, CFM0.800-In. SP 360, Voltage 115, Hz 50/60, Phase 1, Full Load Amps 2.05, RPM 1640, Bearing Type Ball, Motor Type Permanent Split Capacitor, Motor Enclosure Open, Motor Insulation Class B, Thermal Protection Auto, Lead Length 13", Conduit Box Yes, Max. Ambient Temp. 104 Degrees F, Max. Inlet Temp. 104 Degrees F, Inlet Dia. 5-5/16", Outlet Height 4-1/4", Outlet Width 5-1/4", Overall Height 11-1/8", Overall Width 9-3/16", Overall Depth 10-7/16", Wheel Type Forward Curve, Drive Type Direct, Mounting Position All Position, Housing Finish Enamel, Housing Material Rolled Steel, Housing Color Gray, Agency Compliance UL Recognized US and Canada (E47479), CE, Replaces 4C445 and 4YJ32, Includes D.
