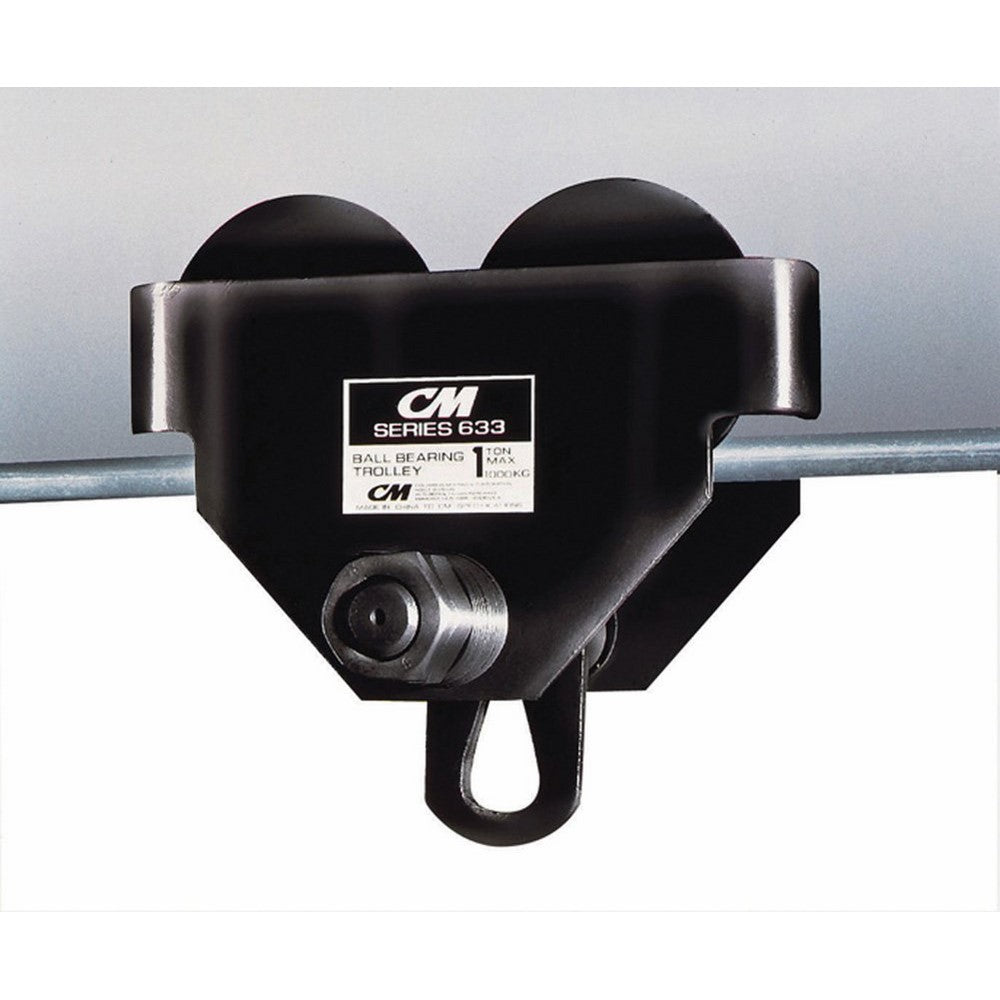

CM Series 633 Steel Manual Plain Wide Range Trolley, 1 ton Capacity

Rugged steel side plates formed to include bumpers and trolley guards

Frames connected by steel equalizer pin, secured by two nuts on each side

Universal tread flanged trackwheels equipped with shielded ball bearings

Easy rolling on american standard shapes, wide flange shapes or patented rail, hardened wheels and axles

Spacer washers can be shifted inside or outside for easy adjustment to wide range of beams

This CM Series 633 manual plain wide range trolley has a 1-ton capacity and a minimum radius curve of 35". Compatible with standard S beams with a 5" to 24" depth. Universal tread flanged track wheels equipped with shielded ball bearings. Minimum 3" and maximum 8" wheel flange width. 3-15/32" tread diameter. Spacer washers can be shifted inside or outside for adjustment to wide range of beams. Rugged steel side plates formed to include bumpers and trolley guards; hardened wheels and axles add strength and durability. Bearings prepacked with lifetime lubricant. For use with hook suspended hoist, imported. Comes in standard pack.
Brand: CM, Model: 3304
