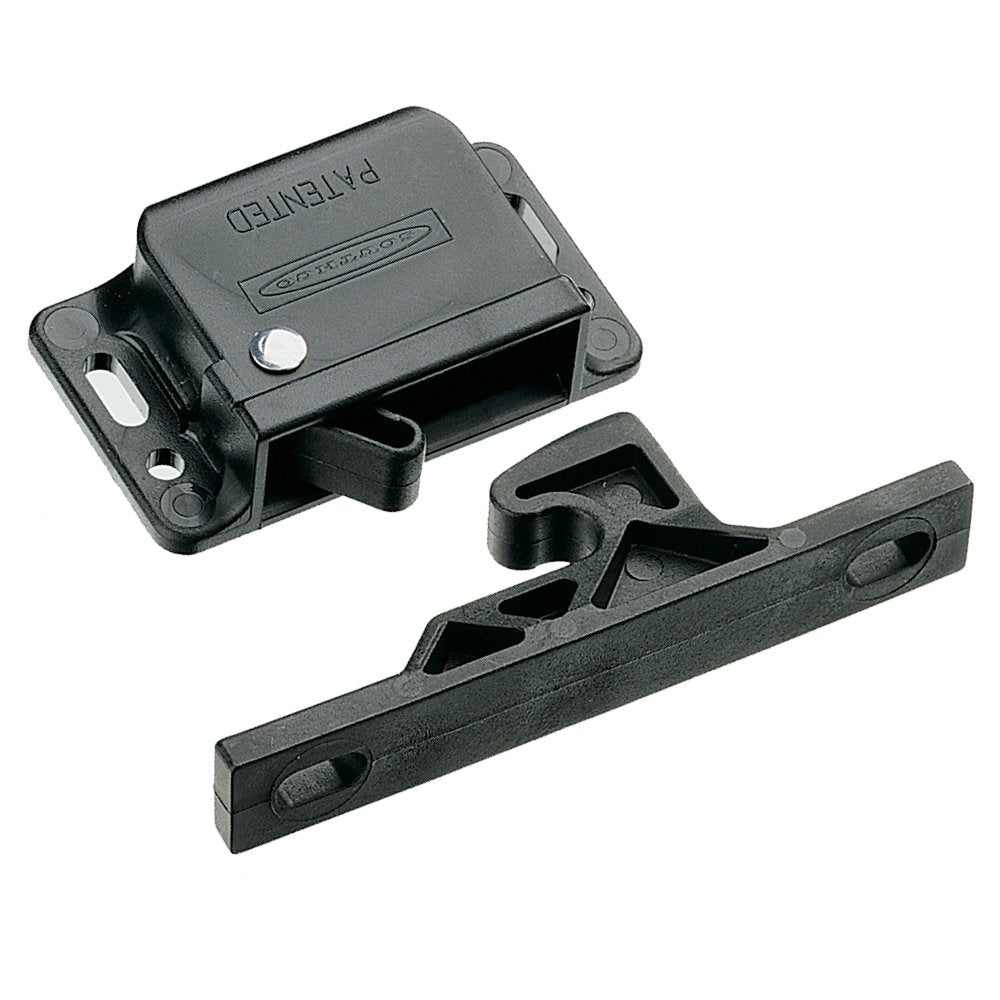

Southco C3-803 Series Passivated Plastic Grabber Catch Side Mount Concealed Push-To-Close Latch with Blue Spring, 13N Pullup, Black

Brand	Southco
Model	C3-803-P
Color	Black
Size	Pack of 1

Spring-loaded over-center latching

The built-in pull-up provides tension to help prevent looseness or rattle of the door against the frame

Feature corrosion-resistant materials

-30 to 60 degree C operating temperature range

UL94-HB Flammability rating

Southco Grabber catch side mount concealed push-to-close latches. Get an extra degree of closure force on doors, with this compact latch's internal spring-loaded pawl that provides over-center latching. The built-in pull-up provides tension to help prevent looseness or rattle of the door against the frame. Latching function is accomplished in a relatively low-profile mechanism, just 0.54-inches thick. Over-center action actually pulls door tighter to latch, releasing it when you pull to open door. Feature corrosion-resistant materials. Industry applications includes automotive, passenger vehicles, trucks, electronic enclosures, exhibits/signs, industrial enclosures, vending machines. Maximum tightening torque on mounting screws (not supplied): Catch: 1.1 N m. Minimum distance from frame (or surface on which catch sub-assembly is mounted) to centerline of door hinge is 5.9-inches. Rivet/screw (thru hole) installation.
