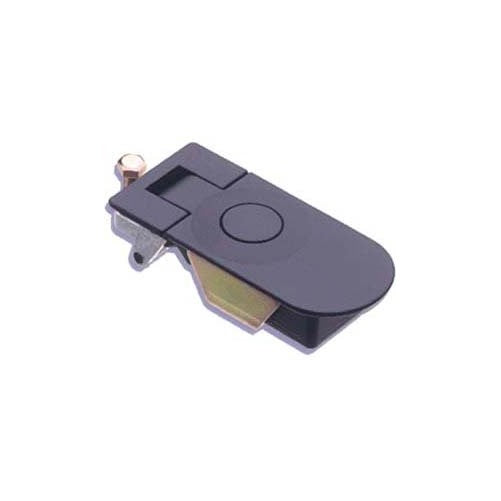

Southco C5 Series Powder Coated Zinc Alloy Sealed Large Lever Hand Operated Compression Latch, Non Locking, 0.04"-0.43" Thick, 0.04"-0.55" Grip Range, Black

Low profile when latched

Easy grip adjustment

Push button actuation

445 N maximum static load

NEMA 4/IP-65 sealing is achieved by using optional flange gasket and sealing the mounting screw threads

Southco gasketed sealed lever latches gives application designers a more stylish alternative for achieving compressive sealing and easy grip adjustment. Combines latch and door handle capability, for enhanced security. Streamlined looks and easy operation make this compression latch an ideal choice for highly visible installations requiring a secure, sealed fit. Compressive action pulls door tight without rubbing action or wear on pawl or frame. Push-button release pops handle up for convenient use. For use in NEMA 4 and IP-66 applications when installed with optional flange gasket. Mounting hardware accommodates a wide variety of door thickness. Threaded adjusting screw and jam nut make it easy to provide necessary grip adjustments over time. Installs easily in single rectangular hole. Industry applications includes automotive/trucks, computers, construction equipment, off-highway, farm equipment, electronic enclosures, exhibits./signs, food equipment, HVAC, industrial enclosures, industrial machinery, machine tools, and metal cutting, lawn/garden equipment, marine, networking, railway, telecommunications, vending machines. Hand operated. Standard size series. Latch assembled: No. 0.04-0.43-inches door thickness.
Brand: Southco, Model: C5-11-15, Color: Black
