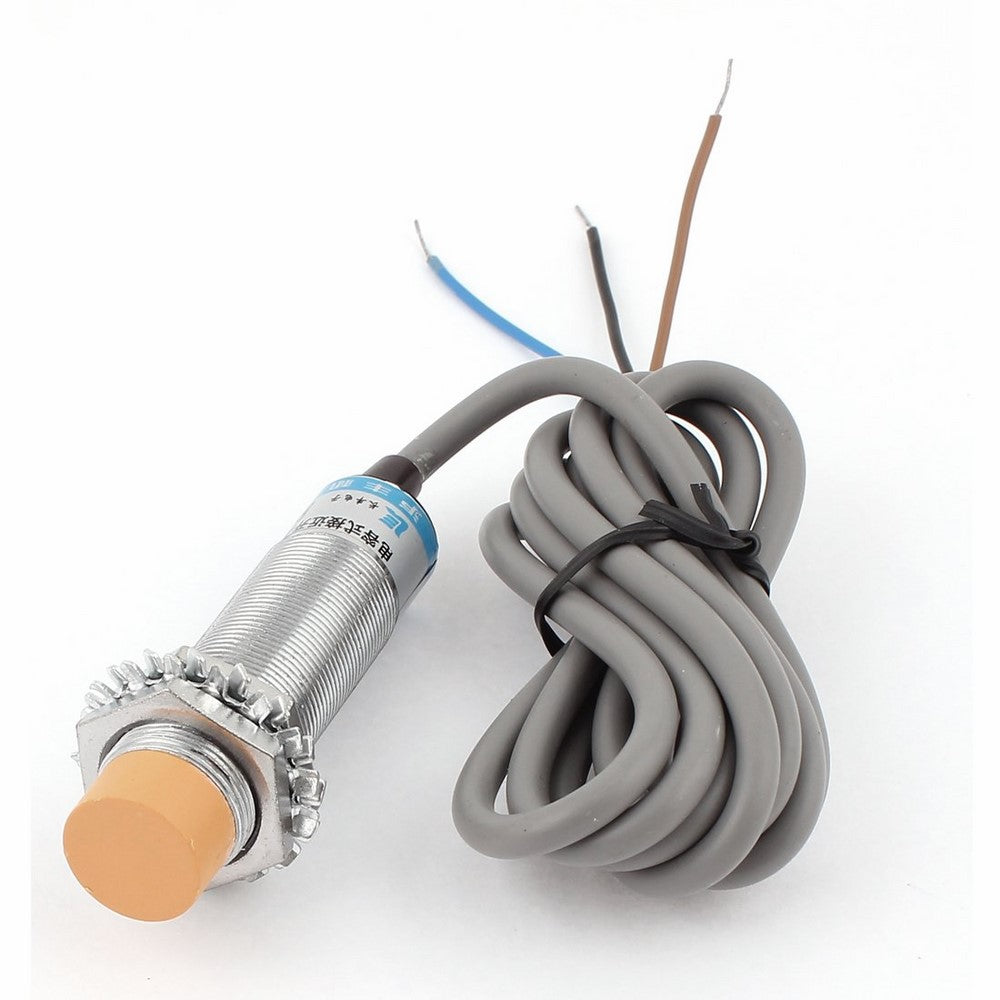

Uxcell NPN NO Capacitance Proximity Sensor Switch, DC 6V - 36V/300 mA, 1 mm -10 mm

Product Name : Capacitive Proximity Switch; Model : LJC18A3-H-Z/BX; Wire Type : DC 3 Wire Type (Brown, Black, Blue);Switch Appearance Type : Cylinder Type

Theory : Capacitance Sensor; Output Type : NPN NO(Normal Open);Diameter of Head : 18mm;Detecting Distance : 1-10mm

Detecting Object : Metal or Nonmetal Material; Supply Voltage : DC 6-36V;Current Output : 300mA;Response Frequency : 100Hz

Operating Temperature : -25 to 65 Celsius (Non-freezing Condition);Size : 7.5 x 3cm / 3"x 1.2"(LMax. Dia);Cable Length : 120cm/47";External Material : Plastic, Alloy

Net Weight : 85g;Color : Silver Tone, Yellow, Gray; Package Content : 1 x Capacitive Proximity Switch

It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. When proximity switch is close to some target object, it will send out control signal. As it is capacitive type proximity switch, its detecting object target is not limited to only conductor, but also liquid and even powder things, like plastic, water, glass, oil, etc. It is widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial etc.
Brand: uxcell, Model: a11031400ux0287
