uxcell 50 Pcs ON/ON 2 Position 1P2T SPDT Mini Panel Slide Switch Solder Lug SS12F1-G3

Out Of Stock

Be the first to review this product

uxcell

SKU: EZFB007QAJMHO

$13.74

Qty

Add to wishlist Add to compare

Quick Overview

Product Name : Slide Switch;Model : SS-12F1G3;Action Type : SPDT;Contact Type : ON/ON, 2 PositionsTerminals Quantity : 3;Working Power : 0.5A 50V DC;Contact Resistance : 30mÎ MaxInsulation Resistance : 100mÎ Min at 500V DC;Withstand Voltage : AC 500V for 1 min;Terminals Size(Each One) : 3 x 1.6mm/ 0.12" x 0.06"...

Product Name : Slide Switch;Model : SS-12F1G3;Action Type : SPDT;Contact Type : ON/ON, 2 Positions

Terminals Quantity : 3;Working Power : 0.5A 50V DC;Contact Resistance : 30mÎ Max

Insulation Resistance : 100mÎ Min at 500V DC;Withstand Voltage : AC 500V for 1 min;Terminals Size(Each One) : 3 x 1.6mm/ 0.12" x 0.06" ( L W)

Switch Total Size : 2 x 0.6 x 1.1cm/ 0.8" x 0.24" x0.43" (L W H);Knob Size : 3 x 3 x 3mm/ 0.12" x 0.12" x 0.12" (L W H);Material(External) : Plastic, Metal

Main Color : Black;Weight : 39g;Package Content : 50Â±2% x Slide Switch

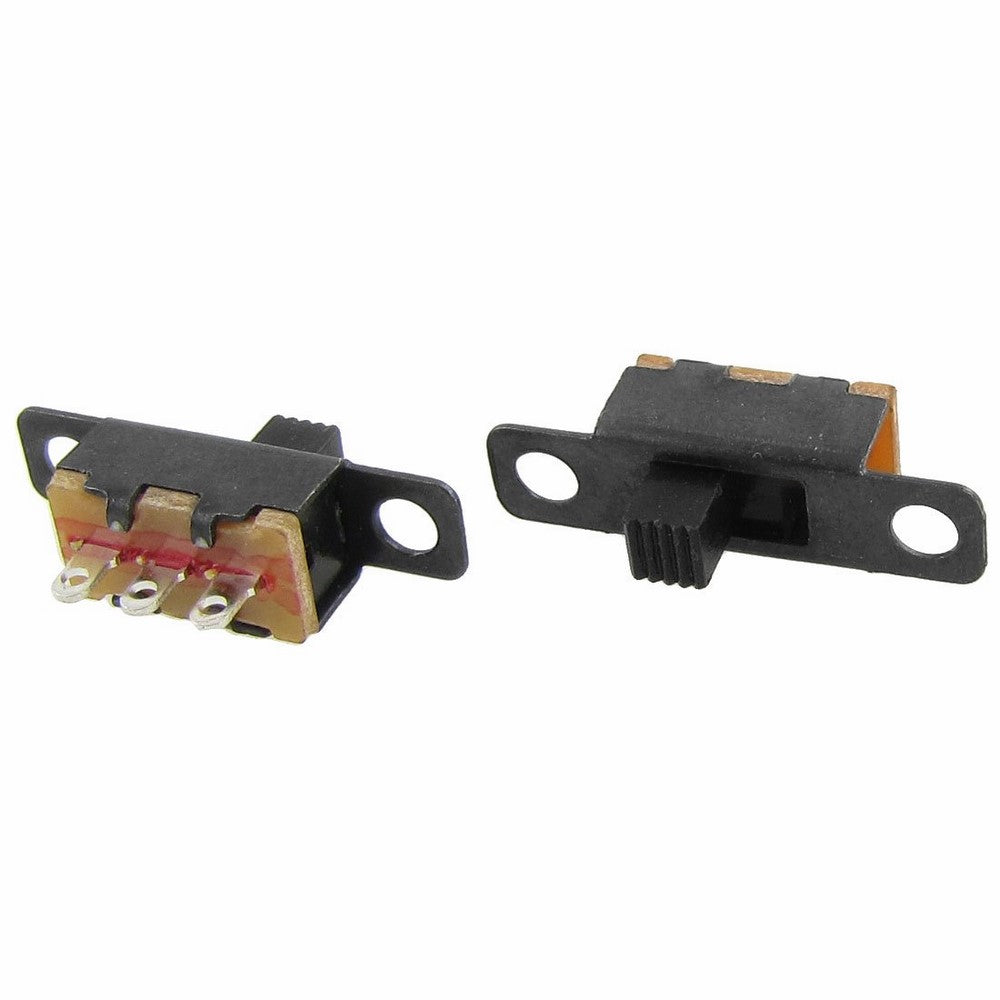

Description:The sliding switch is with 3 terminals, vertical handle, single pole double throw action type, 2 position on/on contact type.Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.

Brand: uxcell

uxcell 50 Pcs ON/ON 2 Position 1P2T SPDT Mini Panel Slide Switch Solder Lug SS12F1-G3
