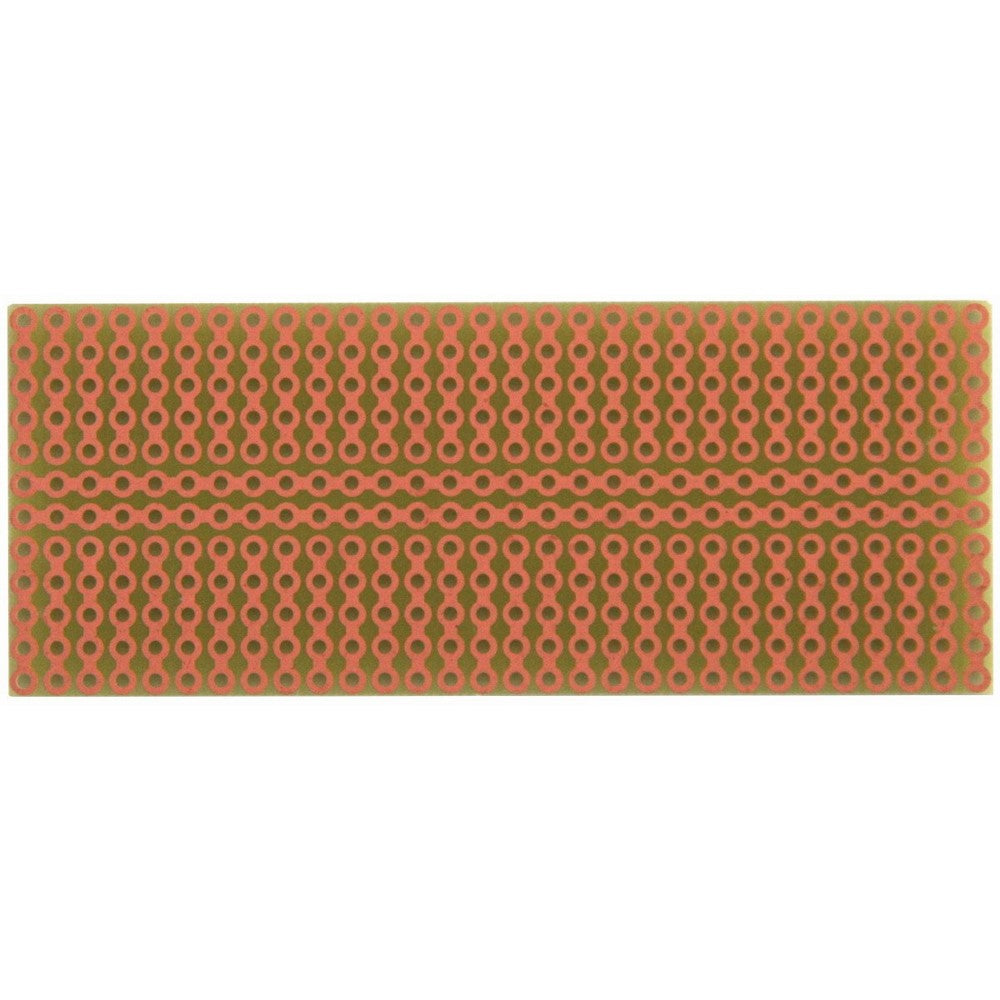

SB300 Solderable PC BreadBoard, 1 Sided PCB, matches 300 tie-point breadboards, 1.20 x 3.00 in (30.5 x 76.2 mm)

Same pattern and spacing as a standard 300 connection point solderless plug-in breadboard.

Single-sided high-quality FR4 glass-epoxy circuit board.

1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

360 holes, 0.042" holes are drilled on 0.1" (2.54mm) centers.

1.20" tall, 3.00" long, 1/16" thick (31 x 76 x 1.6mm)

The SB300 Solderable PC BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout. The SB300 has the same pattern and spacing as a standard 300 connection point solderless plug-in breadboard. It has a standard 5-hole strip for each IC pin, just like solderless breadboards. However, it has the advantage that soldered joints provide a more reliable long-term connection than solderless contacts.The SB300 has two power rails along the centerline.
Brand: BusBoard Prototype Systems
