Completely sealed for NEMA 4X/IP65 wash-downEasy mounting optionsDesigned for applications requiring a water resistant instrument enclosureRugged polycarbonate constructionMeasures 7.40" length by 5.11" width by 7.40" height

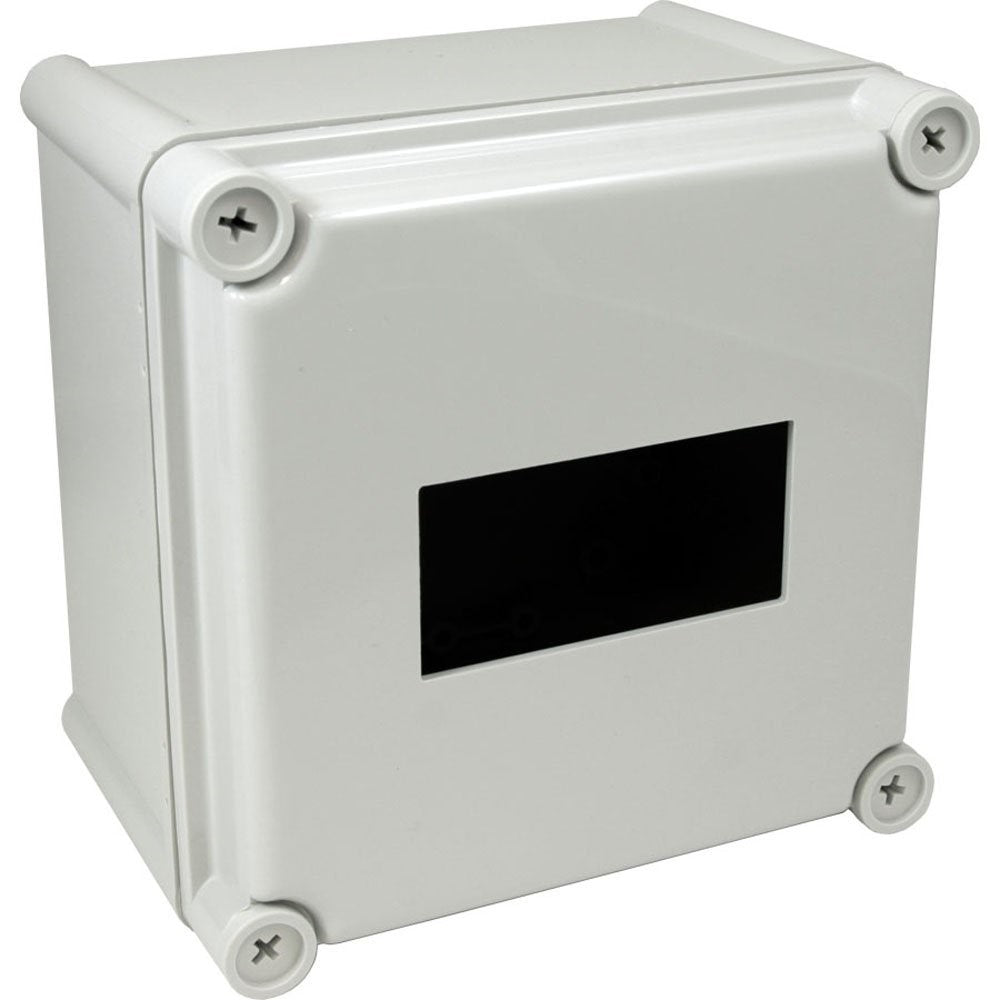

NEMA 4 1/8 DIN series enclosures. These enclosures are designed for applications requiring a water resistant instrument enclosure. The enclosures are fabricated of polycarbonate and are designed to withstand NEMA 4X/IP65 wash-down applications. The enclosures must be drilled to accept conduit fittings or other types of wiring connectors. The enclosures can be used free-standing, or securely fastened to a mounting surface. The enclosures are precut for either one or two meters. When properly installed, the meter and the enclosure can withstand NEMA 4X wash-down applications. Electrical connections to the enclosed instrument are easily made by drilling the desired location on the back or side of the enclosure. Select the proper drill size to accommodate the conduit fitting or other wire connector. To maintain the enclosure NEMA 4X rating, sealed connectors must be used. Also enclosed are wall fastening lugs. which can be used to easy mount the enclosure to a wall. RoHS approvals.
Brand: Red Lion, Model: ENC5B
