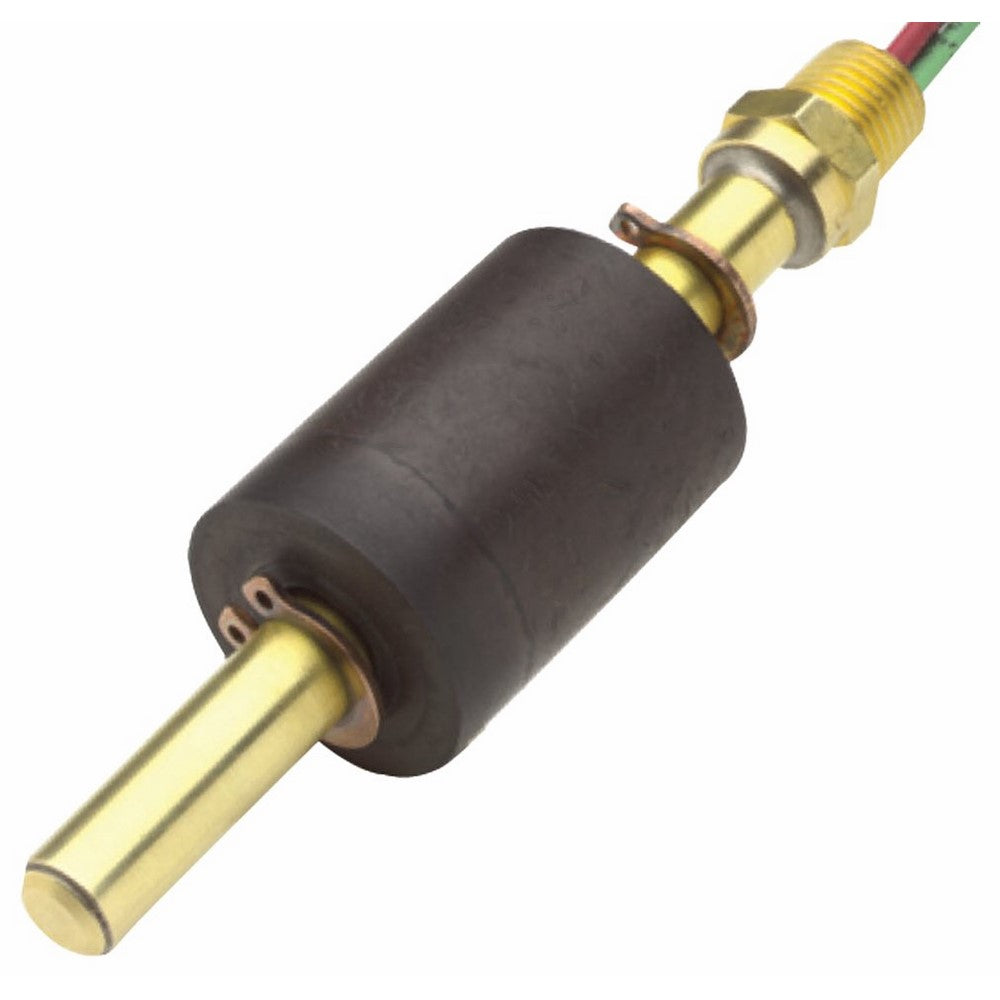

Gems Sensors 57143 Buna N Float Single Point Temperature Level Switch, 1-1/4" Diameter, 1/4" NPT Male, 1-1/2" Actuation Level, 20VA, SPST/Normally Close

Level monitoring and temperature switch in a single unit

Intermediate in size

These units are ideal for use in oils and water

Single-setting temperature sensor is in bottom of stem

Brass steam and mounting

Gems single point level switch. Level monitoring and temperature switch in a single unit. Intermediate in size. These units are ideal for use in oils and water. Single-setting temperature sensor is in bottom of stem. Brass steam and mounting. 0.75 Minimum liquid SG. Operating temperature up to 180 degree F for water and -40 to 230 degree F for oil. 150 psi maximum pressure. 20 VA normally close switch open on 150 degree F. Beryllium copper, hysol other wetted material. UL Recognized, CSA Listed.
Brand: Gems Sensors, Model: 57143
