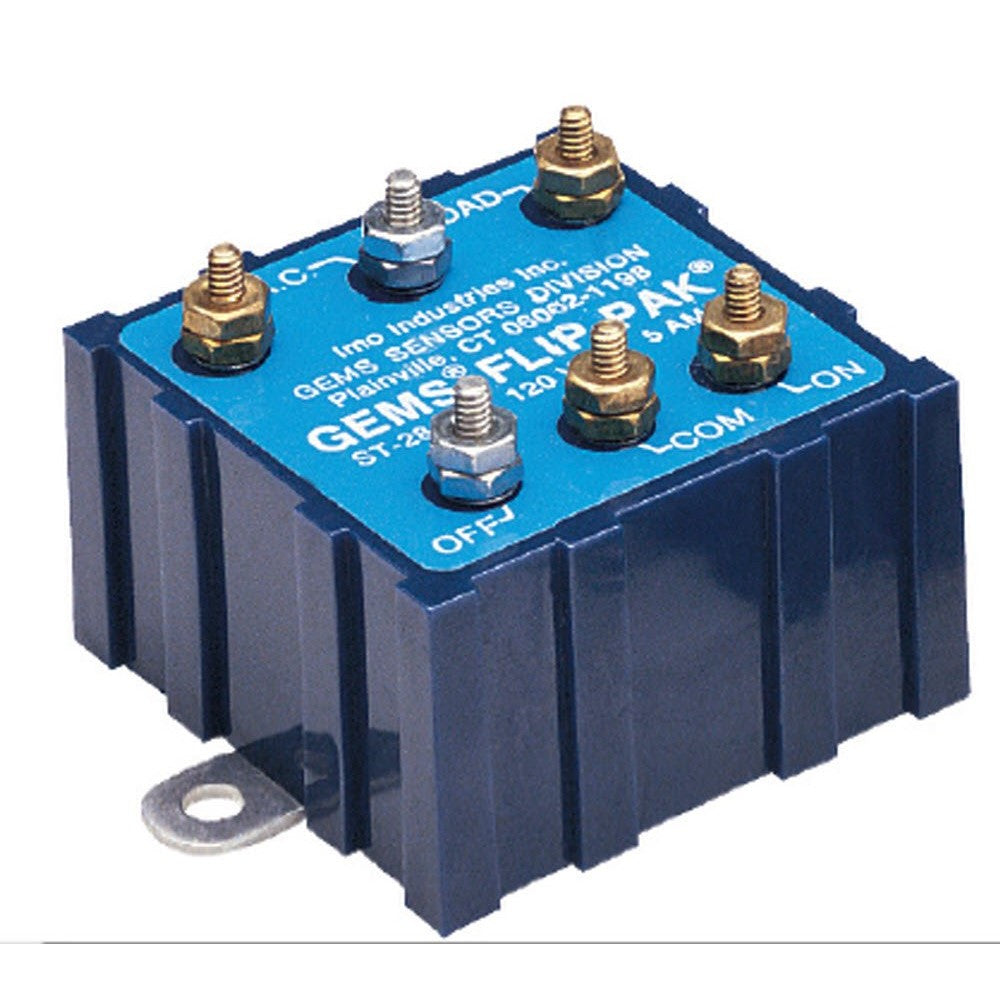

Gems Sensors 28196 Flip-Pak Non-Intrinsically Safe Relay, 100 to 130 VAC, 5A AC Current

Amplify current handling capability of sensors for controlling high power loads

Compact, polysulfone bodies are totally encapsulated

Impervious to shock or vibration

Solid-state reliability

Boost your sensor's load handling ability

Gems solid-state switching units perform the functions of electro-mechanical relays, with the added reliability and advantages inherent in solid-state. Compact, totally encapsulated, and impervious to shock or vibration, these units mount anywhere even directly on working machinery. FLIP-PAKS: provide low-current, "Start-stop" or "on-off" switching for industrial motor, liquid level and other control systems. Units hold operational state up to 1/2 second during momentary power loss to cut nuisance shutdowns; low voltage protection is inherent. 120 VAC and 240 VAC models handle loads to 5 amps. 2 VAC voltage loss. 20 mA sensor current. Leakage current thru load term: 12 mA at 240 VAC. Measures 2-3/4" length by 2-3/8" height.
Brand: Gems Sensors, Model: 28196
