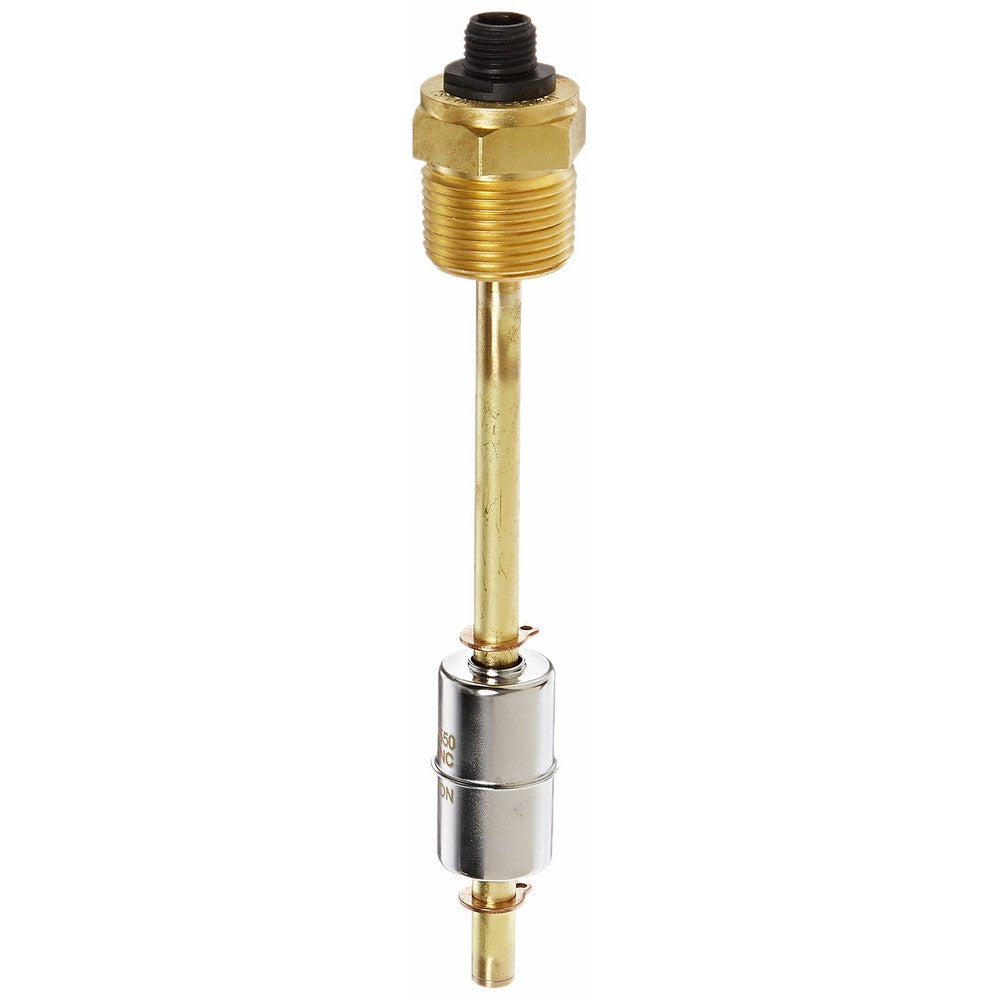

Gems Sensors 128500 304 Stainless Steel Float Single Point Level Switch, 29/32 Diameter, 3/4 NPT Male, 3-3/16 Actuation Level, 20VA, SPST/Normally Close, Dry, 3 Pin Quick Disconnect Receptacle

Overfill protection for refrigerant tanks

3 Pin quick disconnect receptacle

3/4" NPT male

It enables safe compliance with EPA directives to recover refrigerants

UL recognized, CSA listed

Gems 304 Stainless steel float single point level switch. Overfill protection for refrigerant tanks. The LS-700F enables safe compliance with EPA directives to recover refrigerants. These units are designed to fit standard 30# and 50# D.O.T. approved refrigerant tanks. They provide 80% full shutoff capability when used as an integral part of a recovery system. Stem and mounting material: Brass. Float material: 304 stainless steel. Minimum liquid specific gravity: 0.98. Operating temperature: -40 to 221 degree F. Maximum pressure: 400 psi. Switch1 level SPST: 20VA normally close, Dry. Optional electrical termination: 3-Pin. 3 Pin quick disconnect receptacle 29/32" Float diameter. 3/4" NPT Male, 3-3/16" Actuation level. UL recognized and CSA listed.
Brand: Gems Sensors, Model: 128500
