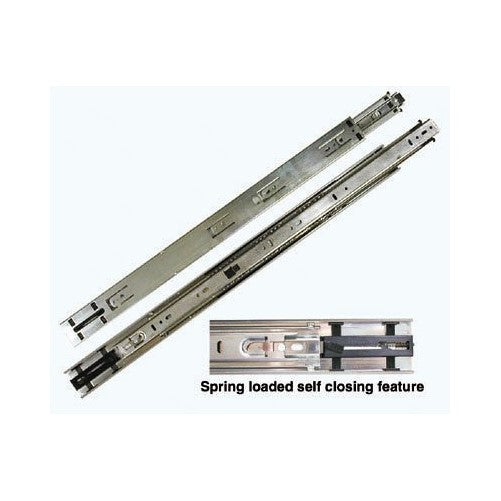

KV 8400 Series Full Extension Precision Ball Bearing Slides Self Closing 22" 100# Class (Set)

Load rating 100#, side clearance - 1/2" 1/32" - 0, Side mounting, Side height 1-13/16"

Self closing, Steel ball bearing, Full 32mm hole pattern, Non-handed

Spring loaded self-closing feature, Screws included

Optional Rear Mounting Bracket, Search: KV Rear Mounting Bracket Anochrome

Optional Face Frame bracket, Search: KV Face Frame Mounting Bracket

12" to 26" Full extension, 100 lb. Class. Exceptionally smooth and quiet. A very high quality slide! Steel ball bearing. (Three bearing per inch of race). Spring loaded self-closing feature. Drawer member setback minimum 1/8" from drawer front. Slide has polymer stop cushions so there is no need for bumper pads. Lacquer top coat. For optimal performance, make drawer width 1 1/16" - 1 1/8" less than the cabinet opening. Drawer width not to exceed drawer slide length. See all Sizes Search, KV 8400 Series
Brand: Knape & Vogt
