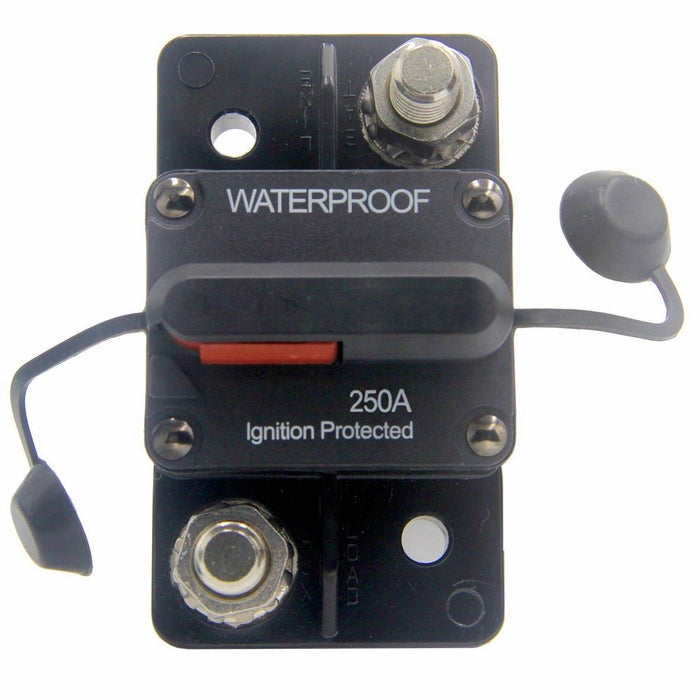

ZOOKOTO 250 Amp Circuit Breaker, Marine Trolling Motors Boat ATV Manual Power Fuse Rest, Waterproof (250A) 12V-48VDC

Power Rating: 250 Amp Miniature Circuit Breakers

Ignition Protection: Compact and lightweight design,Meet S.A.E. J1625, J1171, UL1500. Protects your trolling motor from electrical damage, prevents excessive current and stops power surges from damaging Amps

Reset: Visible Red manual reset lever shows open condition, unique push button reset Can also be used as a kill switch. Button on circuit breaker can act as a master disconnect for circuits. Housing is thermalplastic UL rated 94V0

Waterproof: Surface mount cover protective the stud to be isolated, splash & dust proof, waterproof IP 67

Application: Typically used in auxiliary and accessory circuits for Boat, Marine, RV, Caravan, Winch, Tractor and ATV applications. Also can used as an on/off button switch for the battery or DC sound system

-Power Rating: 250 ampere. -Single pole,thermal device. -Rating:25-250A T348Vdc. -Interrupt Capacity:25-150A 1.5KA48VDC,180-250A 1.5KA14vdc. -ENDURANCE FOR e9_123:500 cycles, 200% 14Vdc. -Housing is thermal plastic UL rated 94V0. -Splash and dust proof at IP67 GRADE. -Operating Temperature: -32C to 82C (-25F to 180F). -Storage Temperature: -34C to 149C (-30F to 300F). -Stud Size:3/8"-16 threads per inch. -Torque rating:50in-lb(5.6Nm)max. -Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected). -NO Manual reset,rate up to 48Vdc. -Surface mount, protective stud insulators included. Features: -Water resistant housing. -High Current Circuit Breaker, to protect to your system. -Unique Push Button Reset can also be used as a Kill Switch. -Self-test, manual control and easy to operate with manual reset arm. -Prevents excessive current and stops power surges from damaging Amps. -Can be mounted on Panel or Firewall. -Typically used in trucks, buses, RVs and marine applications; also used in battery charges and DC sound system. -Application: Typically used in auxiliary and accessory circuits for Boat, Marine, RV and ATV applications. Also can used as an on/off button switch for the battery or DC sound system. Packing list: 1 x 250 Amp Circuit Breaker
Brand: ZOOKOTO, Color: 250A
