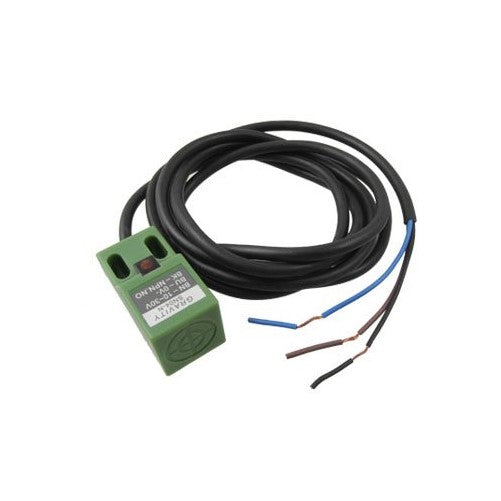

uxcell SN04-N DC 10-30V 200mA NPN NO 3-wire 4mm Approach Sensor Inductive Proximity Switch

Out Of Stock

Be the first to review this product

uxcell

SKU: EZFB004V6PTKA

$15.29

Qty

Add to wishlist Add to compare

Quick Overview

Product Name : Proximity Switch Sensor;Model : SN04-N;Type :NPN No;Theory : Inductance Sensor;Wire Type:3-WireOutput : Switching Transducer;Sensing Distance : 4mm (/-10%);Working Voltage : 10-30V DC;Switch Appearance Type:Rectangle TypeResponse Frequency : 500Hz max;Indicator : Red LED;Size : 18 x18 x 36mm/0.7" x 0.7" x 1.4"(WHL)Cable Length : 135cm/53";Hole Size : 0.9...

Product Name : Proximity Switch Sensor;Model : SN04-N;Type :NPN No;Theory : Inductance Sensor;Wire Type:3-Wire

Output : Switching Transducer;Sensing Distance : 4mm (/-10%);Working Voltage : 10-30V DC;Switch Appearance Type:Rectangle Type

Response Frequency : 500Hz max;Indicator : Red LED;Size : 18 x18 x 36mm/0.7" x 0.7" x 1.4"(WHL)

Cable Length : 135cm/53";Hole Size : 0.9 x 0.4cm/0.35" x 0.2"(LW);Extenal Material : ABS Resin

Net Weight : 48g;Color : Black, Green;Package Content : 1 x Proximity Sensor Switch,2 x Screws

Over-current and short circuit protection, with LED indicate, easily identifiable.The Proximity Sensor Switch is used for testing parts such as size and speed can also be used in frequency counters, frequency pulse generator, liquid level control and processing procedures for the automatic convergence.
Brand: uxcell, Model: a11021800ux0169

uxcell SN04-N DC 10-30V 200mA NPN NO 3-wire 4mm Approach Sensor Inductive Proximity Switch
